VIRTEX-4 Tri-Mode Embedded Ethernet MAC Wrapper v4.4

VIRTEX-4 Description

0 Virtex-4 Tri-Mode Embedded Ethernet MAC Wrapper v4.4 DS307 February 15, 2007 0 0 Product Specification Introduction The LogiCORE™ Virtex-4™ Embed.

VIRTEX-4 Features

* Allows selection of one or both Ethernet MACs (EMAC0/EMAC1) from the Embedded Ethernet MAC primitive www. DataSheet4U. com Design File Formats Constraints File Example Designs
* Connects the EMAC0/EMAC1 tie-off pins based on user options
* Provides user-configurable Etherne

VIRTEX-4 Applications

* Typical applications for the Ethernet MAC core include
* Ethernet Tri-Speed BASE-T Port
* Ethernet 1000BASE-X Port Ethernet Tri-Speed BASE-T Port Figure 2 illustrates a typical application for a single Ethernet MAC. The PHY side of the core is implementing an external GMII/MII by co

📥 Download Datasheet

Preview of VIRTEX-4 PDF

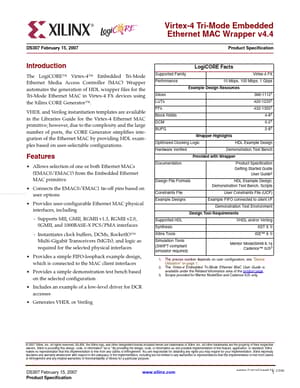

datasheet Preview Page 2 datasheet Preview Page 3
