XC18V04 In-System Programmable Configuration PROMs

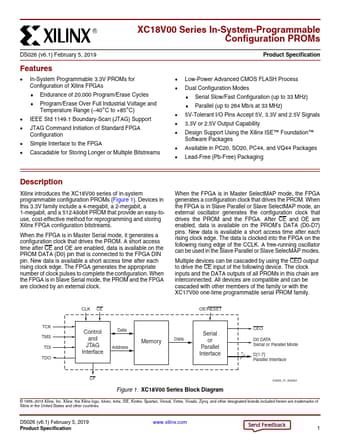

Xilinx introduces the XC18V00 series of in-system programmable configuration PROMs (Figure 1). Devices in this 3.3V family include a 4-megabit, a 2-megabit, a 1-megabit, and a 512-kilobit PROM that provide an easy-touse, cost-effective method for reprogramming and storing Xilinx FPGA configuration b.

XC18V04 Features

* In-System Programmable 3.3V PROMs for Configuration of Xilinx FPGAs

* Endurance of 20,000 Program/Erase Cycles

* Program/Erase Over Full Industrial Voltage and Temperature Range (

* 40°C to +85°C)

* IEEE Std 1149.1 Boundary-Scan (JTAG) Support

* JTAG C

XC18V00_Xilinx.pdf

XC18V04 Datasheet Preview — This datasheet PDF includes multiple part numbers: XC18V04, XC18V00. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

XC18V04, XC18V00

Manufacturer:

Xilinx

File Size:

322.30 KB

Description:

In-system programmable configuration proms.

Note:

This datasheet PDF includes multiple part numbers: XC18V04, XC18V00.
Please refer to the document for exact specifications by model.
