XCR3032XL-7CS48I, XCR-3030 Datasheet - Xilinx

XCR3032XL-7CS48I XCR3032XL 32 Macrocell CPLD

Description The XCR3032XL is a 3.3V, 32-macrocell CPLD targeted at power sensitive designs that require leading edge programmable logic solutions. A total of two function blocks provide 750 usable gates. Pin-to-pin propagation delays are 5.0 ns with a maximum system frequency of 200 MHz. TotalCMOS.

XCR3032XL-7CS48I Features

* Lowest power 32 macrocell CPLD 5.0 ns pin-to-pin logic delays System frequencies up to 200 MHz 32 macrocells with 750 usable gates Available in small footprint packages - 48-ball CS BGA (36 user I/O pins) - 44-pin VQFP (36 user I/O) - 44-pin PLCC (36

XCR-3030-XL.pdf

This datasheet PDF includes multiple part numbers: XCR3032XL-7CS48I, XCR-3030. Please refer to the document for exact specifications by model.

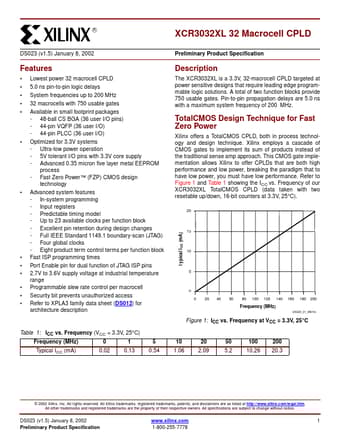

XCR3032XL-7CS48I Datasheet Preview Page 2 XCR3032XL-7CS48I Datasheet Preview Page 3

Datasheet Details

Part number:

XCR3032XL-7CS48I, XCR-3030

Manufacturer:

Xilinx

File Size:

84.97 KB

Description:

Xcr3032xl 32 macrocell cpld.

Note:

This datasheet PDF includes multiple part numbers: XCR3032XL-7CS48I, XCR-3030.
Please refer to the document for exact specifications by model.
