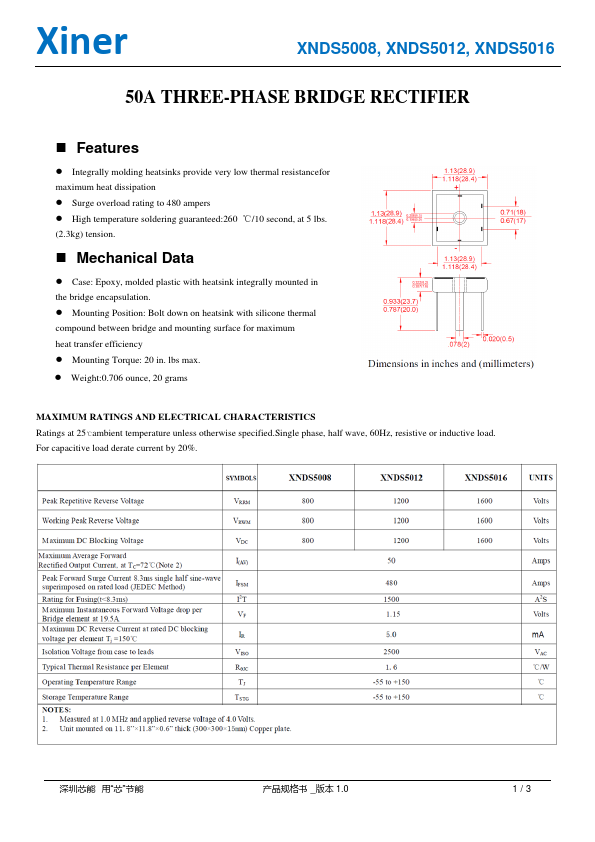

XNDS5012, XNDS5008 - 50A THREE-PHASE BRIDGE RECTIFIER

Datasheet Details

Part number	XNDS5012, XNDS5008
Manufacturer	Xiner
File Size	484.18 KB
Description	50A THREE-PHASE BRIDGE RECTIFIER
Datasheet	XNDS5008-Xiner.pdf
Note	This datasheet PDF includes multiple part numbers: XNDS5012, XNDS5008. Please refer to the document for exact specifications by model.

s.
Integrally molding heatsinks provide very low thermal resistancefor maximum heat dissipation.
Surge overload rating to 480 ampers.
High temperature soldering guaranteed:260 ℃/10 second, at 5 lbs. (2.3kg) tension.
Mechanical Data.
Case: Epoxy, molded plastic with heatsink integrally mounted in the bridge encapsulation.
Mounting Position: Bolt down on heatsink with silicone thermal compound between bridge and mounting surface for maximum heat transfer efficiency.
