XNM50250ATS, XNM50250AT - IPM

XNM50250ATS Datasheet Preview — This datasheet PDF includes multiple part numbers: XNM50250ATS, XNM50250AT. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	XNM50250ATS, XNM50250AT
Manufacturer	Xiner
File Size	1.78 MB
Description	IPM
Datasheet	XNM50250AT-Xiner.pdf
Note	This datasheet PDF includes multiple part numbers: XNM50250ATS, XNM50250AT. Please refer to the document for exact specifications by model.

XNM50250ATS Product details

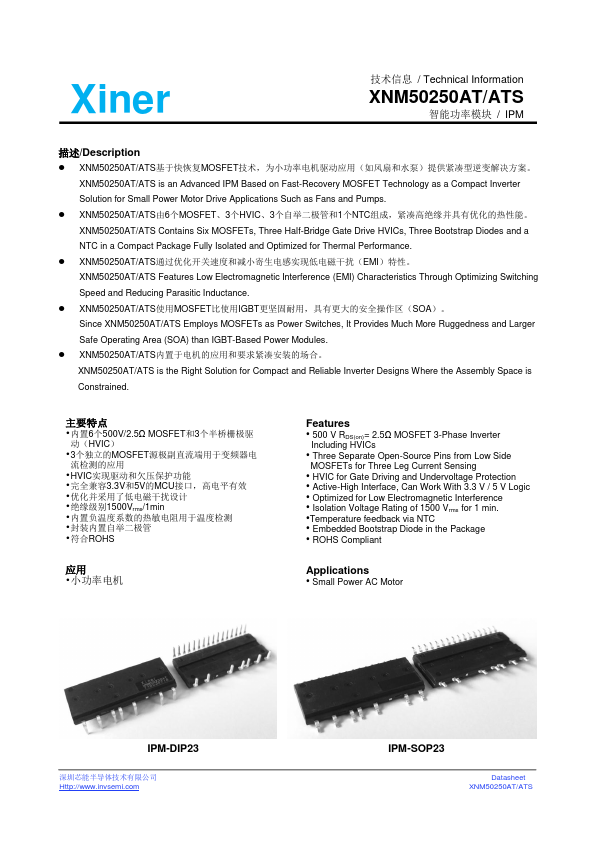

Description

XNM50250AT/ATSMOSFET，（）。 XNM50250AT/ATS is an Advanced IPM Based on Fast-Recovery MOSFET Technology as a Compact Inverter Solution for Small Power Motor Drive Applications Such as Fans and Pumps. XNM50250AT/ATS6MOSFET、3HVIC、31NTC，。 XNM50250AT/ATS Contains Six MOSFETs, Three Half-Bridge Gate Drive HVICs, Three Bootstrap Diodes and a NTC in a Compact Package Fully Isolated and Optimized for Thermal Performance. XNM50250AT/ATS（EMI）。 XNM50250AT/ATS

Features

3-Phase Inverter Including HVICs.
Three Separate Open-Source Pins from Low Side MOSFETs for Three Leg Current Sensing.
HVIC for Gate Driving and Undervoltage Protection.
Active-High Interface, Can Work With 3.3 V / 5 V Logic.
Optimized for Low Electromagnetic Interference.
Isolation Voltage Rating of 1500 Vrms for 1 min.
Temperature feedback via NTC.
Embedded Bootstrap Diode in the Package.
ROHS Compliant.
