RS5DBF - 5.0Amp Fast Recovery Surface Mounted Rectifiers

This page provides the datasheet information for the RS5DBF, a member of the RS5ABF 5.0Amp Fast Recovery Surface Mounted Rectifiers family.

Datasheet Summary

Features

  • The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 Idea for printed circuit board Glass passivated Junction chip Low reverse leakage High forward surge current capability High temperature soldering guaranteed 260 C/10 seconds at terminals SMBF Mechanical Data Case : Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marking on body Mounting Position : Any Weight : 0.002 ounce, 0.056 grams Maximum R.

📥 Download Datasheet

Datasheet preview – RS5DBF

Datasheet Details

Part number RS5DBF
Manufacturer Xirun
File Size 2.26 MB
Description 5.0Amp Fast Recovery Surface Mounted Rectifiers
Datasheet download datasheet RS5DBF Datasheet

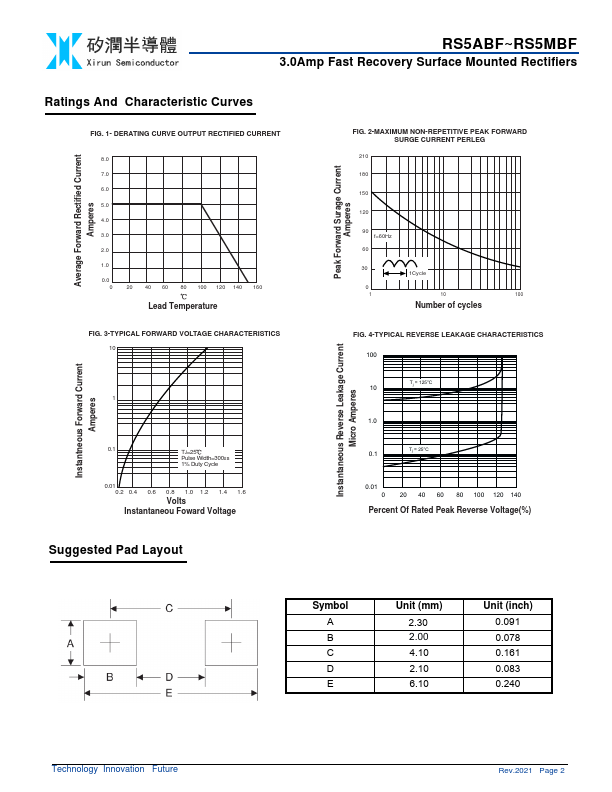

Additional preview pages of the RS5DBF datasheet.

📁 Similar Datasheet

  • RS5DB - FAST RECOVERY RECTIFIER (JIEJIE)
  • RS5DB - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES (Sunmate)
  • RS5DB - Surface Mount Fast Recovery Rectifiers (UNSEMI)
  • RS5DB - Ultra-Fast Recovery Rectifier Diode (Semiware)
  • RS5DB - Surface Mount Fast Recovery Rectifiers (Tinysemi)
  • RS5D - Surface Mount Rectifiers (LGE)
  • RS5D - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES (SUNMATE)
  • RS5D - SURFACE MOUNT SUPER FAST RECTIFIER (Kingtronics)
  • RS5D - 5.0 AMP SURF ACE MOUNT FAST RECOVERY RECTIFIER (GW)
  • RS5D - Fast Recovery Rectifier Diodes (MLSM)
Other Datasheets by Xirun
  • RS5ABF - 5.0Amp Fast Recovery Surface Mounted Rectifiers
  • RS5BBF - 5.0Amp Fast Recovery Surface Mounted Rectifiers
  • RS5GBF - 5.0Amp Fast Recovery Surface Mounted Rectifiers
  • RS5JBF - 5.0Amp Fast Recovery Surface Mounted Rectifiers
  • RS5KBF - 5.0Amp Fast Recovery Surface Mounted Rectifiers
  • RS5MBF - 5.0Amp Fast Recovery Surface Mounted Rectifiers

Full PDF Text Transcription

Click to expand full text

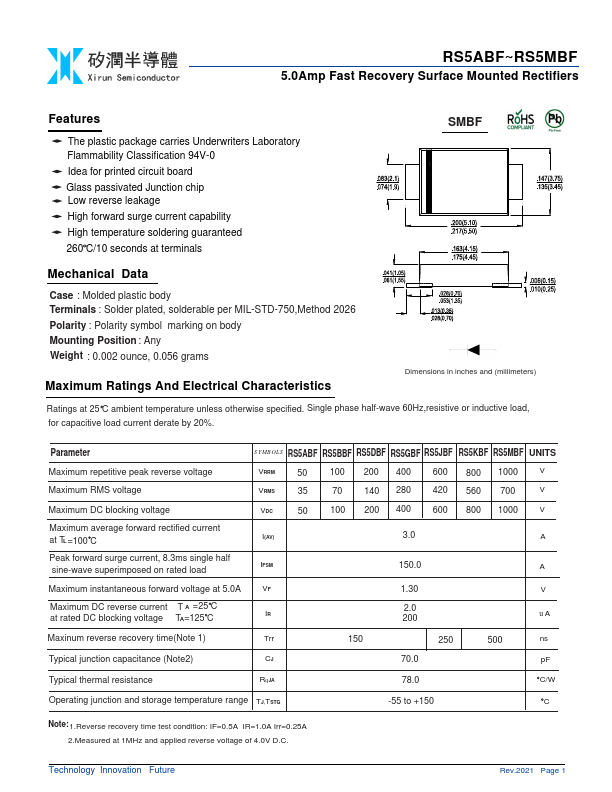

RS5ABF~RS5MBF 5.0Amp Fast Recovery Surface Mounted Rectifiers Features The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 Idea for printed circuit board Glass passivated Junction chip Low reverse leakage High forward surge current capability High temperature soldering guaranteed 260 C/10 seconds at terminals SMBF Mechanical Data Case : Molded plastic body Terminals : Solder plated, solderable per MIL-STD-750,Method 2026 Polarity : Polarity symbol marking on body Mounting Position : Any Weight : 0.002 ounce, 0.056 grams Maximum Ratings And Electrical Characteristics Dimensions in inches and (millimeters) Ratings at 25 C ambient temperature unless otherwise specified.
