RS5MBF, RS5ABF 5.0Amp Fast Recovery Surface Mounted Rectifiers

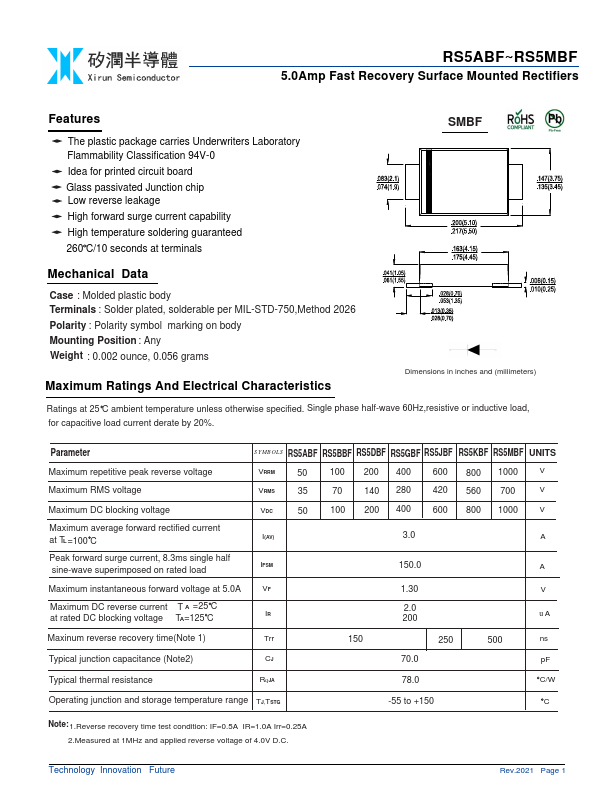

📥 Download Datasheet  Datasheet Preview Page 1

Description

RS5ABF~RS5MBF 5.0Amp Fast Recovery Surface Mounted Rectifiers .

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: RS5MBF, RS5ABF. Please refer to the document for exact specifications by model.

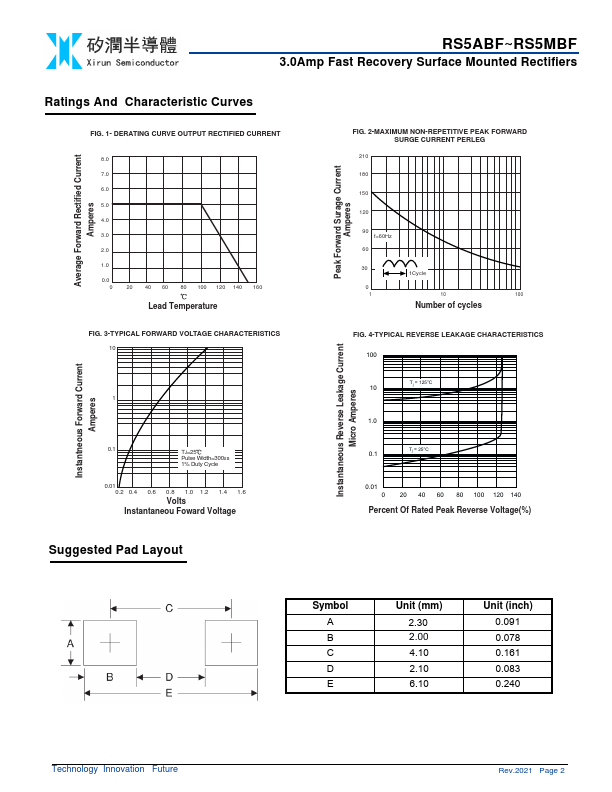

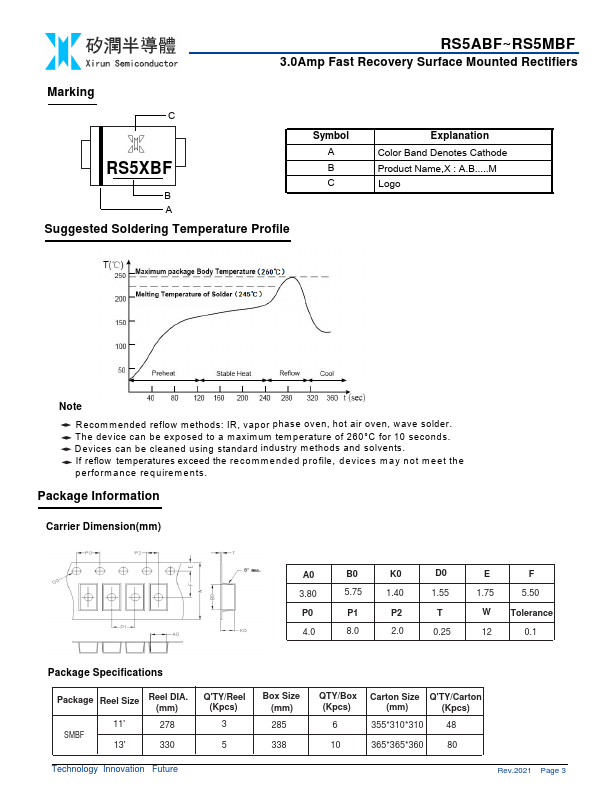

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Specifications

Part number
RS5MBF, RS5ABF
Manufacturer
Xirun
File Size
2.26 MB
Datasheet
RS5ABF-Xirun.pdf
Description
5.0Amp Fast Recovery Surface Mounted Rectifiers
Note
This datasheet PDF includes multiple part numbers: RS5MBF, RS5ABF.
Please refer to the document for exact specifications by model.

Features

* The plastic package carries Underwriters Laboratory Flammability Classification 94V-0 Idea for printed circuit board Glass passivated Junction chip Low reverse leakage High forward surge current capability High temperature soldering guaranteed 260 C/10 seconds at terminals SMBF Mechanical Data Cas
