XB4908VD One Cell Lithium-ion/Polymer Battery Protection IC

Description

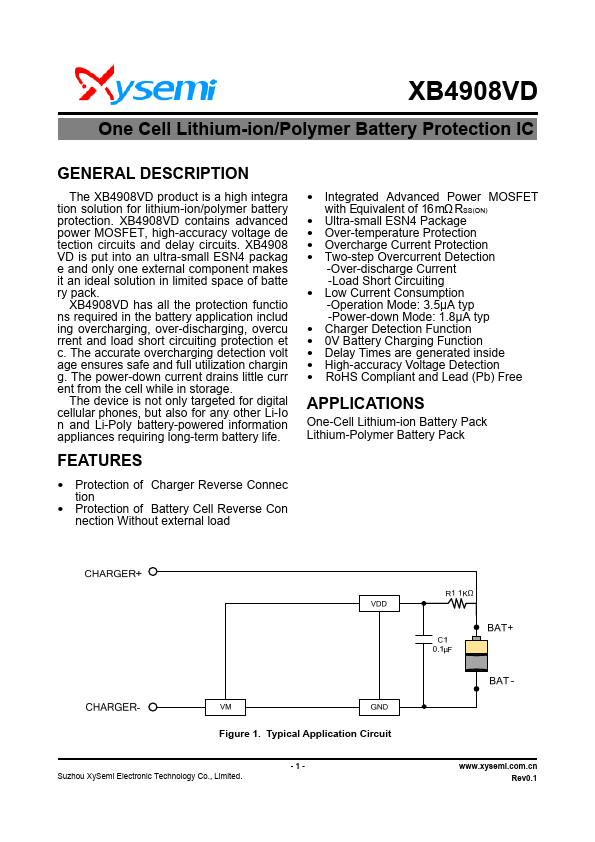

XB4908VD One Cell Lithium-ion/Polymer Battery Protection IC GENERAL .
The XB4908VD product is a high integra tion solution for lithium-ion/polymer battery protection.

📥 Download Datasheet

XB4908VD Datasheet Preview — Preview of XB4908VD PDF

Datasheet Specifications

Part number: XB4908VD
Manufacturer: XySemi
File Size: 285.78 KB
Datasheet: XB4908VD-XySemi.pdf
Description: One Cell Lithium-ion/Polymer Battery Protection IC

Features

*  Protection of Charger Reverse Connec tion
*  Protection of Battery Cell Reverse Con nection Without external load
*  Integrated Advanced Power MOSFET with Equivalent of 16 mΩ RSS(ON)
*  Ultra-small ESN4 Package
*  Over-temperature Protection
*  Overcharge Current Protecti

Applications

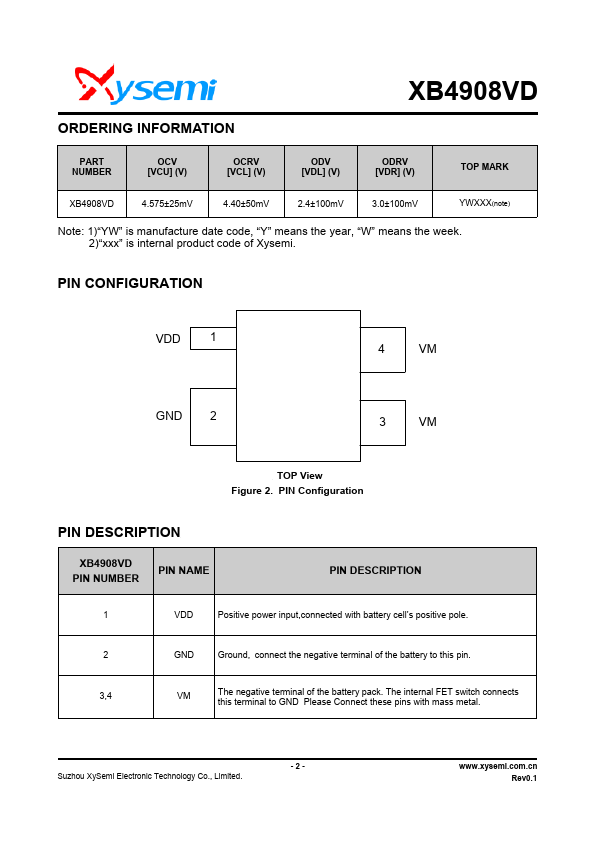

* One-Cell Lithium-ion Battery Pack Lithium-Polymer Battery Pack Figure 1. Typical Application Circuit -1Suzhou XySemi Electronic Technology Co. , Limited. www. xysemi. com. cn Rev0.1 XB4908VD ORDERING INFORMATION PART NUMBER OCV [VCU] (V) OCRV [VCL] (V) ODV [VDL] (V) ODRV [VDR] (V) TOP MARK XB
