XB8089G, One Cell Lithium-ion/Polymer Battery Protection

XB8089G ______________________________________ _____________________________________________________________________________ One Cell Lithium-ion/Poly.
The XB8089G product is a high integration solution for lithiumion/polymer battery protection.

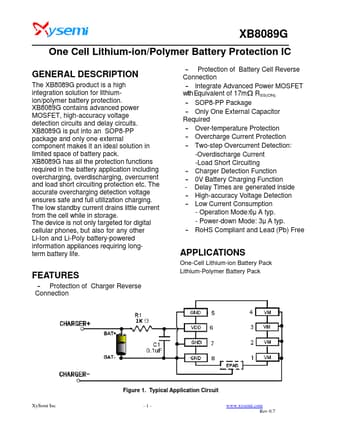

datasheet Preview Page 1 from Datasheet4u.com

XB8089G-XySemi.pdf

XB8089G Datasheet Preview — Preview of XB8089G PDF

Datasheet Details

Part number:

XB8089G

Manufacturer:

XySemi

File Size:

1.19 MB

Description:

One Cell Lithium-ion/Polymer Battery Protection

Features

* Protection of Charger Reverse Connection
* Protection of Battery Cell Reverse Connection
* Integrate Advanced Power MOSFET with Equivalent of 17mΩ RSS(ON)
* SOP8-PP Package
* Only One External Capacitor Required
* Over-temperature Protection
* Overcharge Current Protection

Applications

* One-Cell Lithium-ion Battery Pack Lithium-Polymer Battery Pack XySemi Inc Figure 1. Typical Application Circuit -1- www. xysemi. com Rev 0.7 XB8089G ______________________________________ ____________________________________________________ ___________________ __________ ORDERING INFORMATION PA
