XBL6042MS-SM - One Cell Lithium-ion/Polymer Battery Protection IC

This page provides the datasheet information for the XBL6042MS-SM, a member of the XBL6042-SM One Cell Lithium-ion/Polymer Battery Protection IC family.

Datasheet Summary

Description

The XBL6042-SM Series product is a hi g-h integration solution for lithium-ion/poly m-er battery protection.

XBL6042-SM Seri es contains advanced power MOSFET, hi gh-accuracy voltage detection circuits and del-ay circuits.

Features

  • Protection of Battery Cell Reverse Connection without external load.
  • Protection of Charger Reverse Connection.
  • Integrate Advanced Power MOSFET with Equivalent of 44mΩ RDS(ON).
  • DFN 1x1x0.37-4Package.
  • Low Overcharge Release Voltage.
  • Over-temperature Protection.
  • Overcharge Current Protection 0.4A.
  • Two-step Overcurrent Detection: -Overdischarge Current 0.4A -Load Short Circuiting.
  • Charger Detection Function.
  • 0V Battery Charging Function.
  • Delay.

📥 Download Datasheet

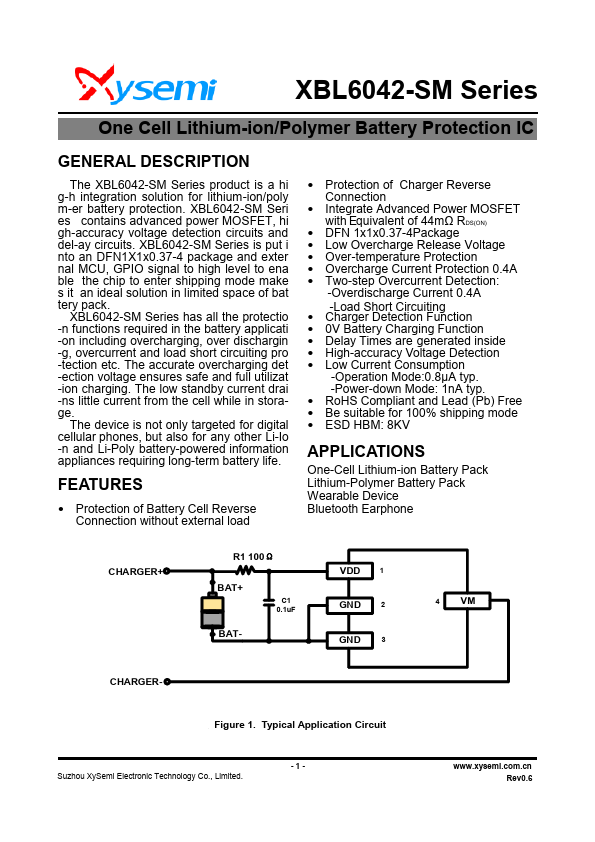

Datasheet preview – XBL6042MS-SM

Datasheet Details

Part number XBL6042MS-SM
Manufacturer XySemi
File Size 0.96 MB
Description One Cell Lithium-ion/Polymer Battery Protection IC
Datasheet download datasheet XBL6042MS-SM Datasheet

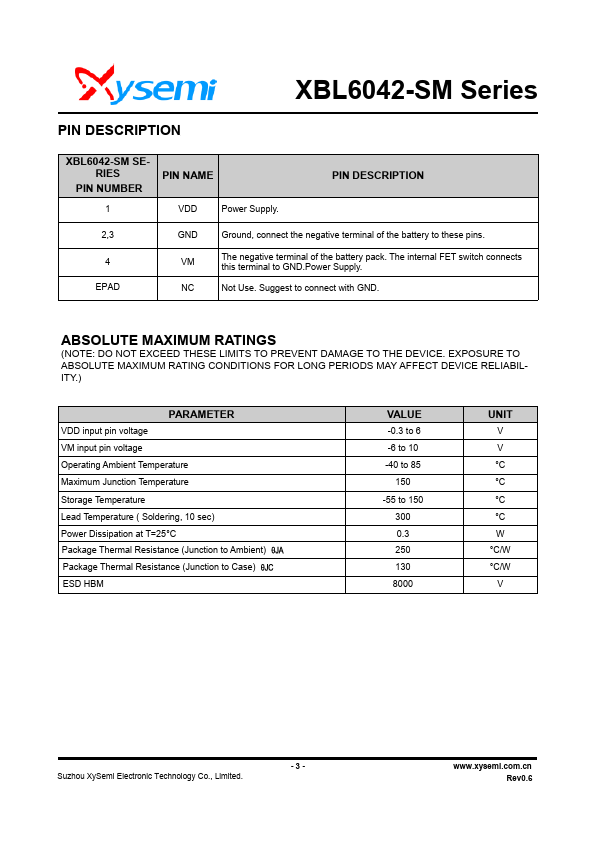

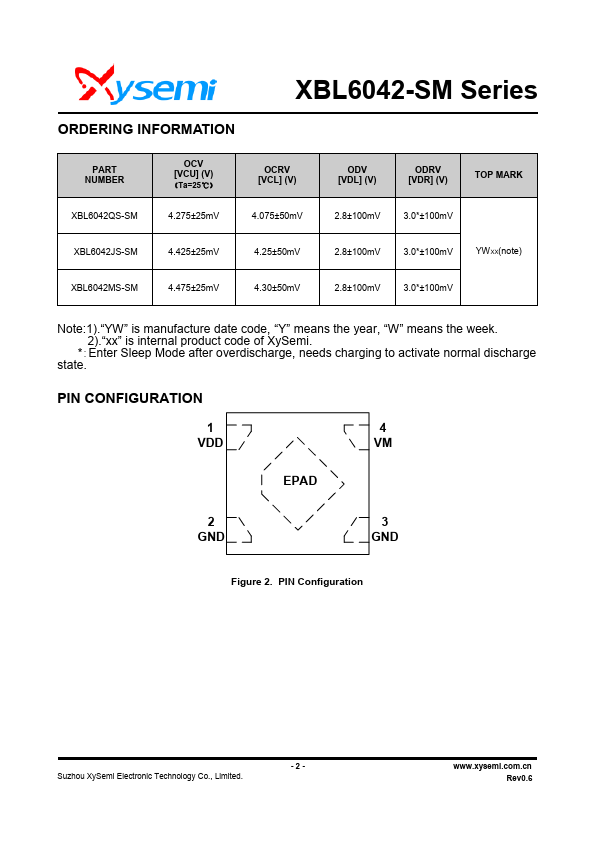

Additional preview pages of the XBL6042MS-SM datasheet.

📁 Similar Datasheet

Other Datasheets by XySemi
  • XBL6042-SM - One Cell Lithium-ion/Polymer Battery Protection IC
  • XBL6042JS-SM - One Cell Lithium-ion/Polymer Battery Protection IC
  • XBL6042QS-SM - One Cell Lithium-ion/Polymer Battery Protection IC

Full PDF Text Transcription

Click to expand full text
XBL6042-SM Series One Cell Lithium-ion/Polymer Battery Protection IC GENERAL DESCRIPTION The XBL6042-SM Series product is a hi g-h integration solution for lithium-ion/poly m-er battery protection. XBL6042-SM Seri es contains advanced power MOSFET, hi gh-accuracy voltage detection circuits and del-ay circuits. XBL6042-SM Series is put i nto an DFN1X1x0.37-4 package and exter nal MCU, GPIO signal to high level to ena ble the chip to enter shipping mode make s it an ideal solution in limited space of bat tery pack. XBL6042-SM Series has all the protectio -n functions required in the battery applicati -on including overcharging, over dischargin -g, overcurrent and load short circuiting pro -tection etc.
