XR3403

26V Step-up DC/DC Converter

XR3403 Features

* z 2.3V to 6V input voltage Rangel z Efficiency up to 96% z 26V Boost converter with adjusted switch current z 1.2Mhz fixed Switching Frequency z Integrated soft-start z Thermal Shutdown z Under voltage Lockout z SOT23-6 Package APPLICATIONS

* Handheld Devices

* GPS Receiver

XR3403 General Description

The XR3403 is a high frequency, high efficiency DC to DC converter with an integrated 3A, 0.1Ω power switch capable of providing an output voltage up to 26V. The fixed 1.2MHz allows the use of small external inductions and capacitors and provides fast transient response. It integrates Soft start, Co.

XR3403 Datasheet (238.92 KB)

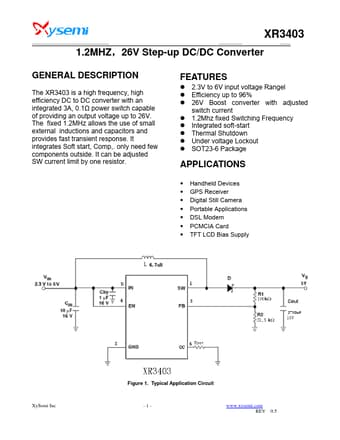

Preview of XR3403 PDF

Datasheet Details

Part number:

XR3403

Manufacturer:

XySemi

File Size:

238.92 KB

Description:

26v step-up dc/dc converter.
