XR6503

SYNCHRONOUS BOOST CONVERTER

XR6503 Features

* 2.5V Minimum input voltage

* Adjustable output voltage

* 6A peak current limit

* Input under voltage lockout

* 600Khz fixed Switching Frequency

* Load disconnect during shutdown

* Integrated soft-start

* Output over voltage protection

* 30mohm Power MOSFET

XR6503 General Description

XR6503/XR6503D is a high efficiency synchronous boost regulator that converts down to 2.5V input and 5V output voltage. It adopts NMOS for the main switch and PMOS for the synchronous switch. It can disconnect the output from input during the shutdown mode.. It integrates 6A power MOSFET and can out.

XR6503 Datasheet (464.42 KB)

XR6503 Datasheet Preview — Preview of XR6503 PDF

Datasheet Details

Part number:

XR6503

Manufacturer:

XySemi

File Size:

464.42 KB

Description:

Synchronous boost converter.

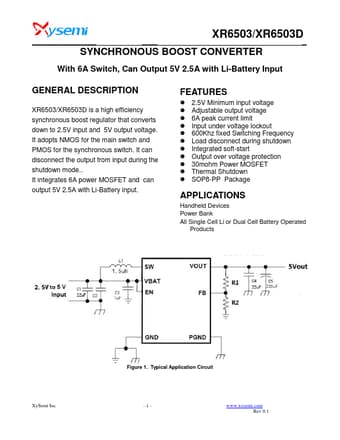

XR6503/XR6503D _____________________________ _______ __ SYNCHRONOUS BOOST CONVERTER With 6A Switch, Can Output 5V 2.5A with Li-Battery Input GEN.
