XS5502

Li-Battery Transfer

XS5502 Features

* 2.5V to 5.5V Input Range

* 2A Output Capability

* High Efficiency up to 95%

* Low Quiescent Current 20uA

* Adjustable Output Voltage from 0.6V to VIN

* 1.5MHz Constant Frequency Operation

* Under Voltage Lockout, Over Current, Short Current, and Thermal Protection

XS5502 General Description

XS5502 is one SOC that it integrates LiBattery Protection and Buck converter in only DFN3x3-10 package. This SOC can output 1.5Vout 2A with LiBattery Input and has the whole battery protection function include Vcu、Vdl、 Iov、short protection. It only need few components and can reduce the BOM area and.

XS5502 Datasheet (454.33 KB)

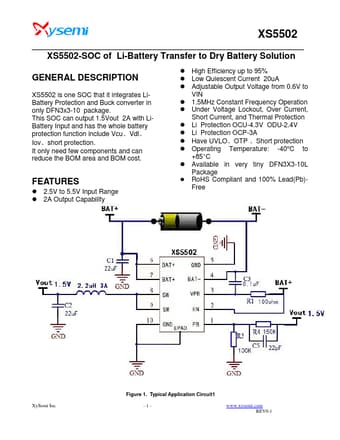

Preview of XS5502 PDF
