ATV321 Datasheet - YAGEO

ATV321 - CHIP RESISTORS RF ATTENUATORS

POWER RATING ATV321rated power at 70°C is 40 mW RATED VOLTAGES The DC or AC (rms) continuous working voltage corresponding to the rated power is determined by the following formula: V=√(P X R) Where V=Continuous rated DC or AC (rms) working voltage (V) P=Rated power (W) R=Resistance value (X) ndboP

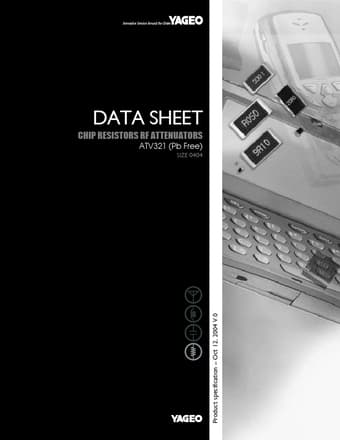

DATA SHEET CHIP RESISTORS RF ATTENUATORS ATV321 (Pb Free) SIZE 0404 Product specification Oct 12, 2004 V.0 Chip Resistors RF Attenuators AT SERIES V321 (0404) / Pb Free Product specification 2 7 SCOPE This specification describes ATV321 series chip attenuators with lead-free terminations made by thick film process.

ORDERING INFORMATION Part number is identified by the series, size, tolerance, packing type, temperature coefficient, taping reel and resistance value.

YAGEO ORDERING

ATV321-YAGEO.pdf

Preview of ATV321 PDF
ATV321 Datasheet Preview Page 2 ATV321 Datasheet Preview Page 3

Datasheet Details

Part number:

ATV321

Manufacturer:

YAGEO

File Size:

206.87 KB

Description:

Chip resistors rf attenuators.
