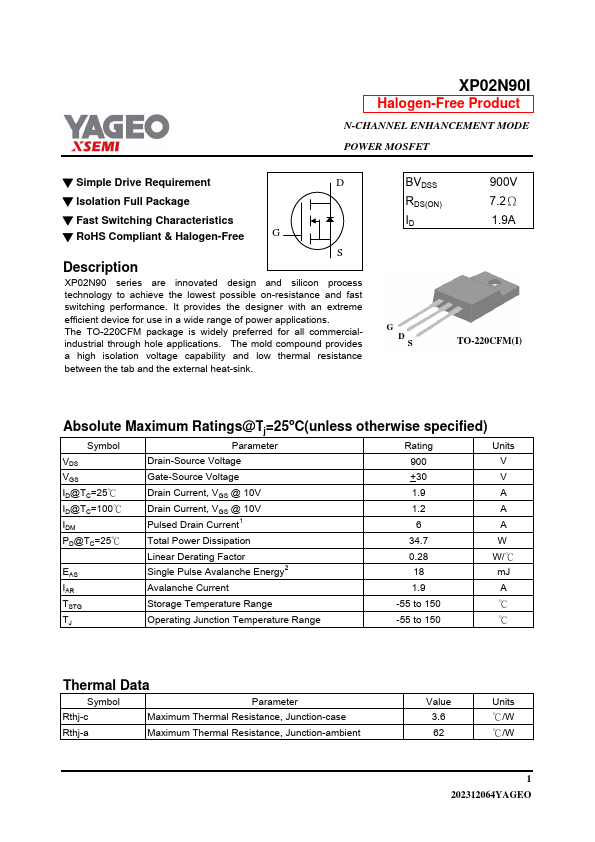

XP02N90I
Description
XP02N90 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance. It provides the designer with an extreme efficient device for use in a wide range of power applications. The TO-220CFM package is widely preferred for all mercialindustrial through hole applications. The mold pound provides a high isolation voltage capability and low thermal resistance between the tab and the external heat-sink.
BVDSS RDS(ON) ID
900V 7.2Ω 1.9A
TO-220CFM(I)
Absolute Maximum Ratings@Tj=25o C(unless otherwise specified)
Symbol
Parameter
Rating
Units
VDS VGS ID@TC=25℃ ID@TC=100℃ IDM PD@TC=25℃
EAS IAR TSTG TJ
Drain-Source Voltage Gate-Source Voltage Drain Current, VGS @ 10V Drain Current, VGS @ 10V Pulsed Drain Current1 Total Power Dissipation Linear Derating Factor Single Pulse Avalanche Energy2 Avalanche Current Storage Temperature Range Operating Junction Temperature Range
900 +30 1.9 1.2
6 34.7 0.28...
