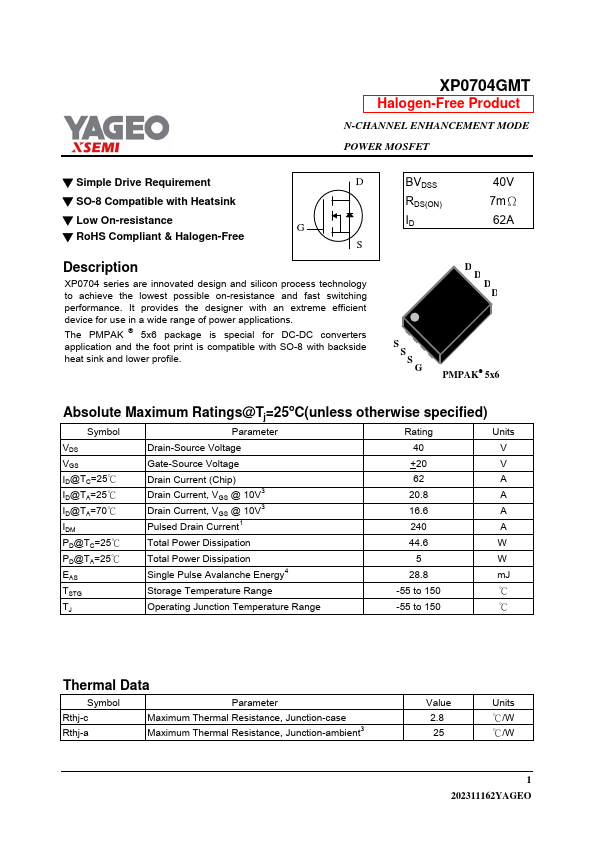

XP0704GMT
Description
XP0704 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance. It provides the designer with an extreme efficient device for use in a wide range of power applications. The PMPAK ® 5x6 package is special for DC-DC converters application and the foot print is patible with SO-8 with backside heat sink and lower profile.
BVDSS RDS(ON) ID
40V 7mΩ 62A
PMPAK® 5x6
Absolute Maximum Ratings@Tj=25o C(unless otherwise specified)
Symbol
Parameter
Rating
Units
VDS VGS ID@TC=25℃ ID@TA=25℃ ID@TA=70℃ IDM PD@TC=25℃ PD@TA=25℃ EAS TSTG TJ
Drain-Source Voltage Gate-Source Voltage Drain Current (Chip) Drain Current, VGS @ 10V3 Drain Current, VGS @ 10V3 Pulsed Drain Current1 Total Power Dissipation Total Power Dissipation Single Pulse Avalanche Energy4 Storage Temperature Range Operating Junction Temperature Range
+20
28.8 m J
-55...
