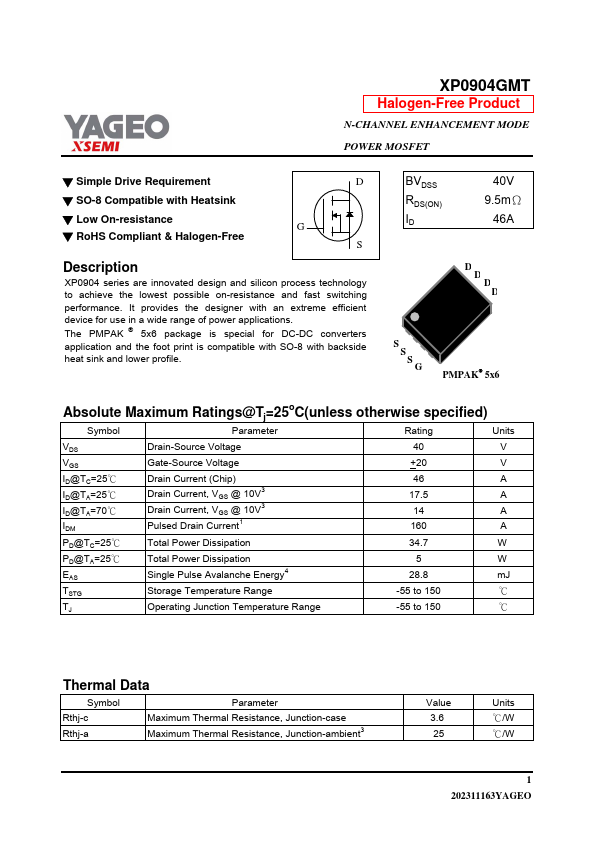

XP0904GMT N-CHANNEL ENHANCEMENT MODE POWER MOSFET

XP0904GMT Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Simple Drive Requirement D ▼ SO-8 Compatible with Heatsink ▼ Low On-resis.
XP0904 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

XP0904GMT-YAGEO.pdf

XP0904GMT Datasheet Preview — Preview of XP0904GMT PDF

Datasheet Details

Part number:

XP0904GMT

Manufacturer:

YAGEO

File Size:

354.60 KB

Description:

N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The PMPAK ® 5x6 package is special for DC-DC converters application and the foot print is compatible with SO-8 with backside heat sink and lower profile. BVDSS RDS(ON) ID 40V 9.5mΩ 46A D D D D S S S G PMPAK® 5x6 Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter
