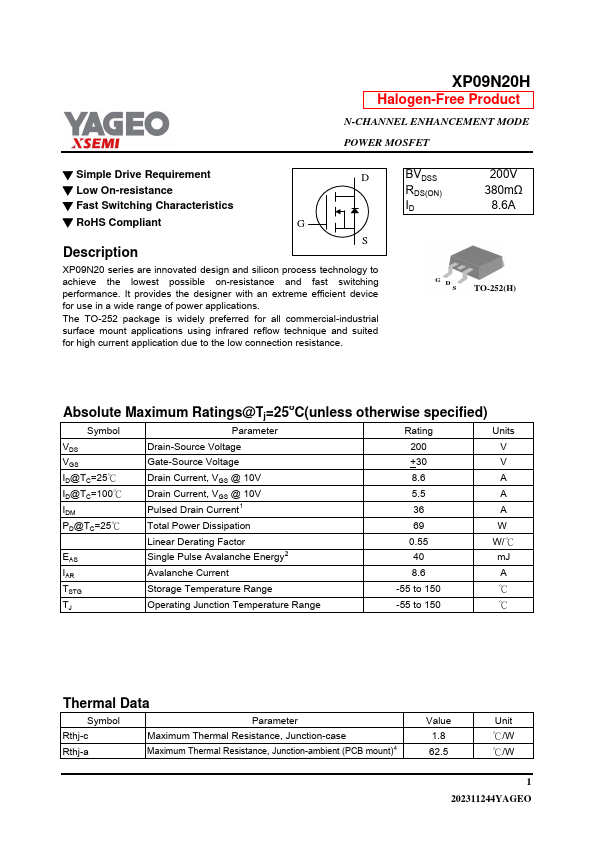

XP09N20H
Description
XP09N20 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance. It provides the designer with an extreme efficient device for use in a wide range of power applications. The TO-252 package is widely preferred for all mercial-industrial surface mount applications using infrared reflow technique and suited for high current application due to the low connection resistance.
BVDSS RDS(ON) ID
200V 380mΩ
8.6A
G DS
TO-252(H)
Absolute Maximum Ratings@Tj=25o C(unless otherwise specified)
Symbol
Parameter
Rating
Units
VDS VGS ID@TC=25℃ ID@TC=100℃ IDM PD@TC=25℃
EAS IAR TSTG TJ
Drain-Source Voltage Gate-Source Voltage Drain Current, VGS @ 10V Drain Current, VGS @ 10V Pulsed Drain Current1 Total Power Dissipation Linear Derating Factor Single Pulse Avalanche Energy2 Avalanche Current Storage Temperature Range Operating Junction Temperature Range
200 +30 8.6 5.5 36 69 0.55 40 8.6 -55 to 150 -55 to...
