XP2P053N P-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP2P053N Halogen-Free Product P-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ Capable of 2.5V Gate Drive D ▼ Small Package Outline ▼ Surface Mount Device .
XP2P053 series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

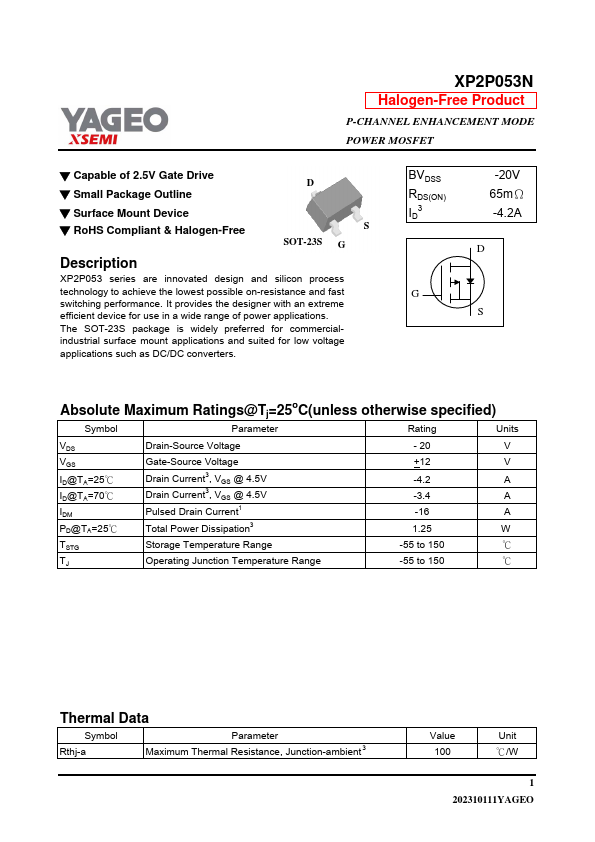

XP2P053N Datasheet Preview — Preview of XP2P053N PDF

Datasheet Specifications

Part number: XP2P053N
Manufacturer: YAGEO
File Size: 191.08 KB
Datasheet: XP2P053N-YAGEO.pdf
Description: P-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The SOT-23S package is widely preferred for commercialindustrial surface mount applications and suited for low voltage applications such as DC/DC converters. BVDSS RDS(ON) ID3 -20V 65mΩ -4.2A D G S Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating Units V
