XP4NAR72CXT N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP4NAR72CXT Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Simple Drive Requirement ▼ Ultra Low On-resistan.
XP4NAR72C series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

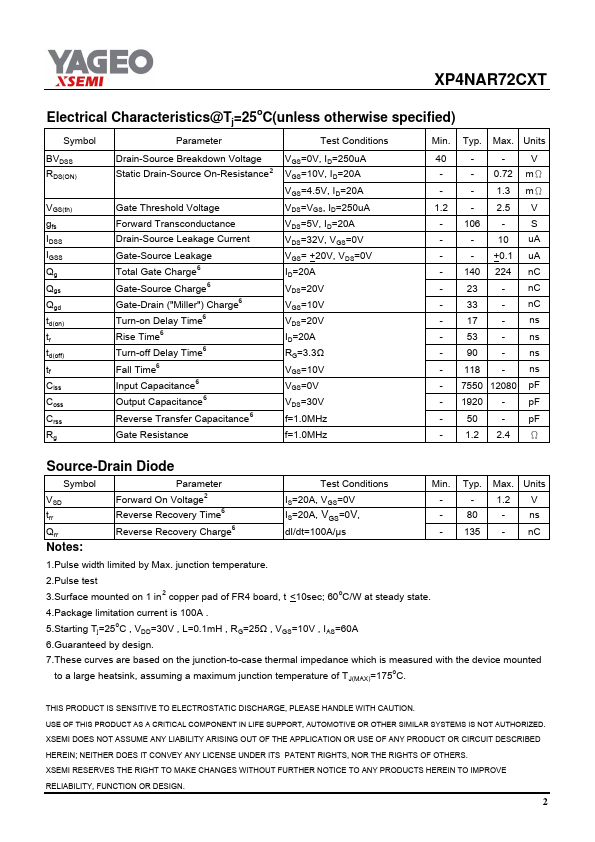

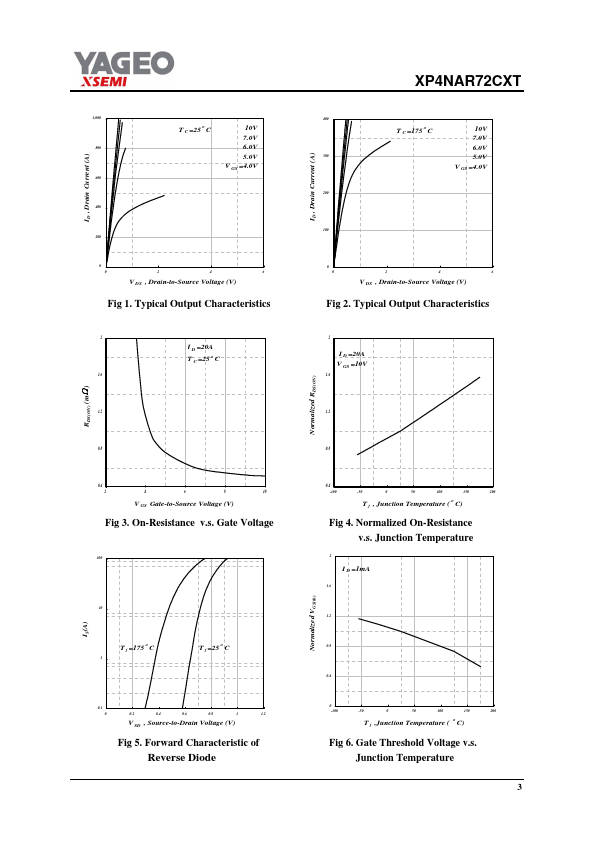

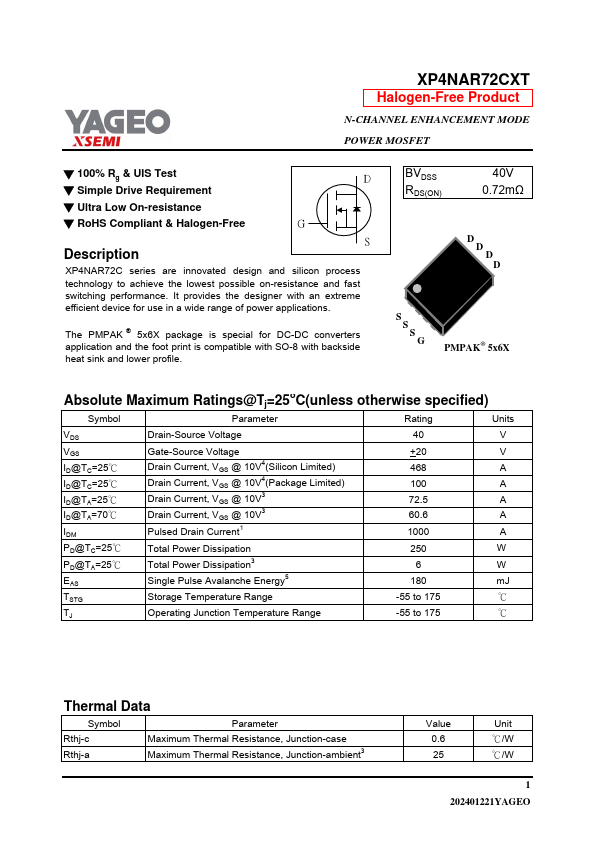

XP4NAR72CXT Datasheet Preview — Preview of XP4NAR72CXT PDF

Datasheet Specifications

Part number: XP4NAR72CXT
Manufacturer: YAGEO
File Size: 303.21 KB
Datasheet: XP4NAR72CXT-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The PMPAK ® 5x6X package is special for DC-DC converters application and the foot print is compatible with SO-8 with backside heat sink and lower profile. BVDSS RDS(ON) 40V 0.72mΩ D D D D S S S G PMPAK® 5x6X Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rat
