XP60SC280ADIT N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP60SC280ADIT Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Low trr / Qrr ▼ Simple Drive Requirement G ▼ R.
XP60SC280AD series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

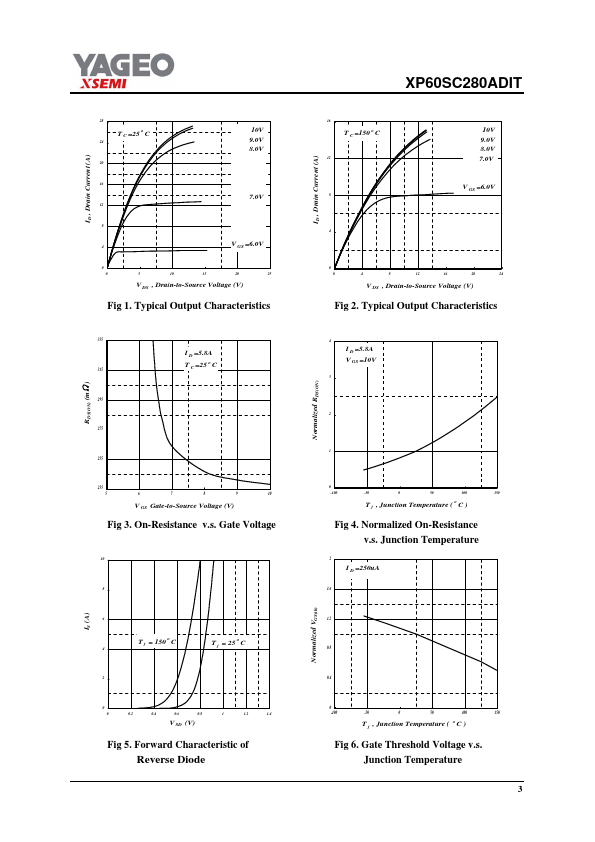

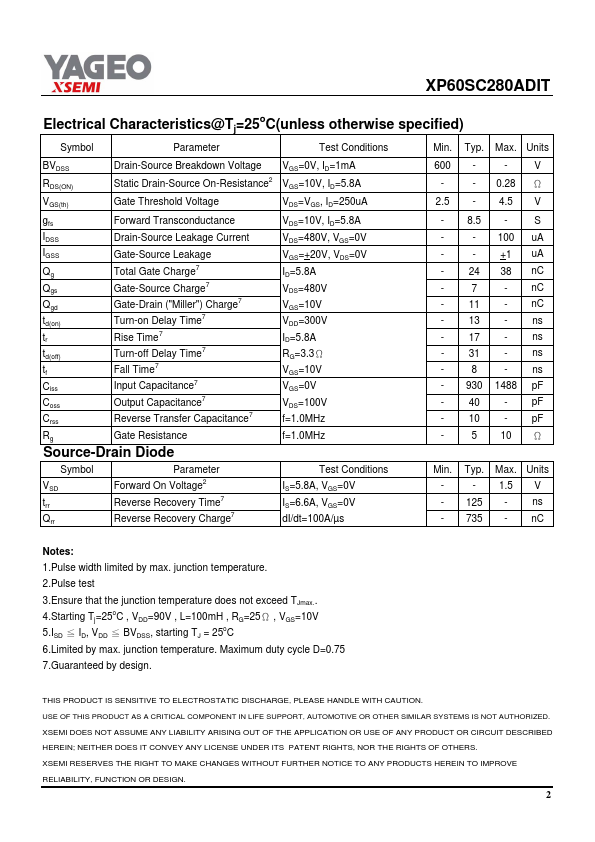

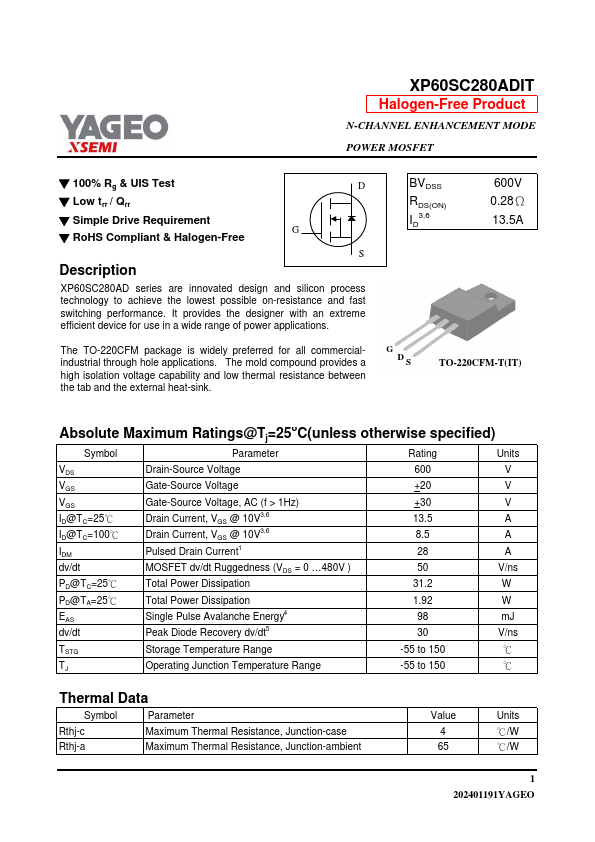

XP60SC280ADIT Datasheet Preview — Preview of XP60SC280ADIT PDF

Datasheet Specifications

Part number: XP60SC280ADIT
Manufacturer: YAGEO
File Size: 271.78 KB
Datasheet: XP60SC280ADIT-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The TO-220CFM package is widely preferred for all commercialindustrial through hole applications. The mold compound provides a high isolation voltage capability and low thermal resistance between the tab and the external heat-sink. BVDSS RDS(ON) ID3,6 600V 0.28Ω 13.5A G DS TO-220CFM-T(IT) Abs
