XP6NA3R3LMT N-CHANNEL ENHANCEMENT MODE POWER MOSFET

YAGEO

Description

XP6NA3R3LMT Halogen-Free Product N-CHANNEL ENHANCEMENT MODE POWER MOSFET ▼ 100% Rg & UIS Test D ▼ Simple Drive Requirement ▼ Lower On-resistance .
XP6NA3R3L series are innovated design and silicon process technology to achieve the lowest possible on-resistance and fast switching performance.

📥 Download Datasheet

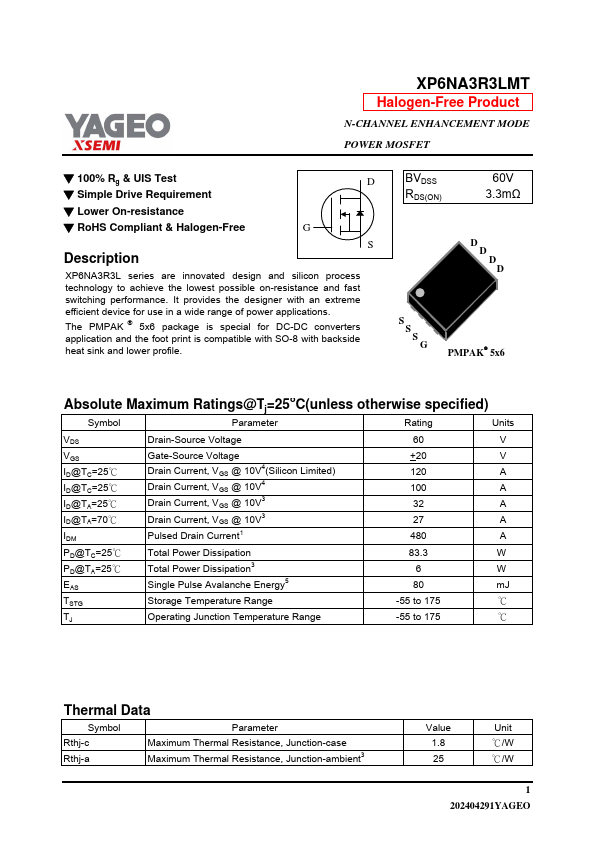

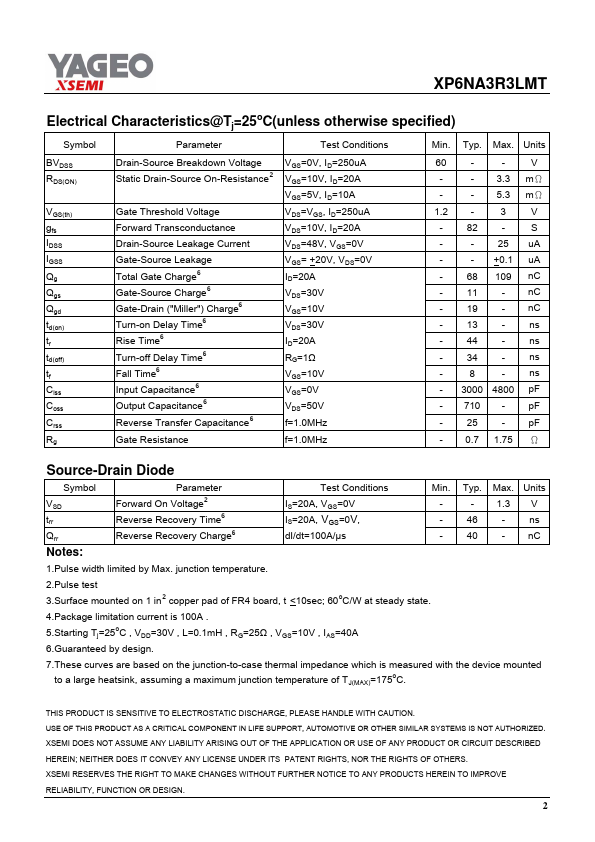

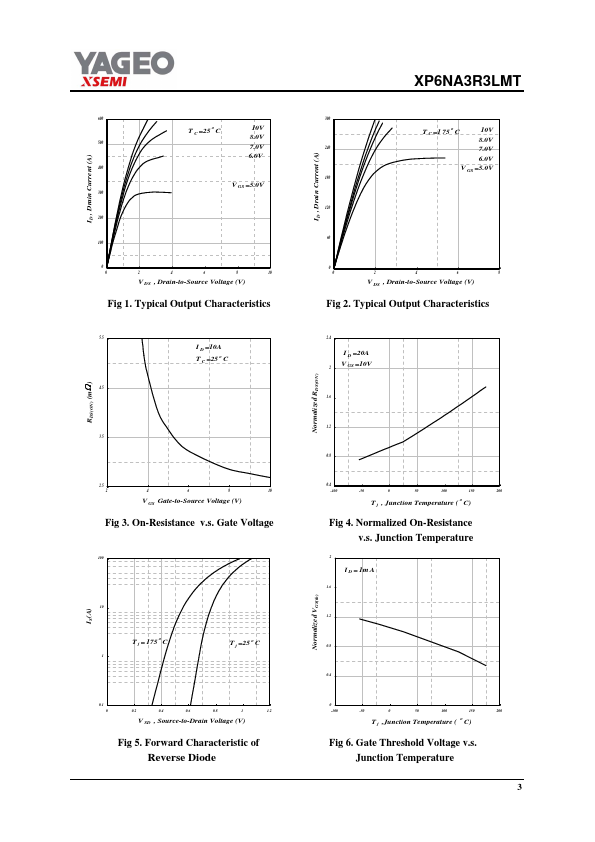

XP6NA3R3LMT Datasheet Preview — Preview of XP6NA3R3LMT PDF

Datasheet Specifications

Part number: XP6NA3R3LMT
Manufacturer: YAGEO
File Size: 363.29 KB
Datasheet: XP6NA3R3LMT-YAGEO.pdf
Description: N-CHANNEL ENHANCEMENT MODE POWER MOSFET

Applications

* The PMPAK ® 5x6 package is special for DC-DC converters application and the foot print is compatible with SO-8 with backside heat sink and lower profile. BVDSS RDS(ON) 60V 3.3mΩ D D D D S S S G PMPAK® 5x6 Absolute Maximum Ratings@Tj=25oC(unless otherwise specified) Symbol Parameter Rating
