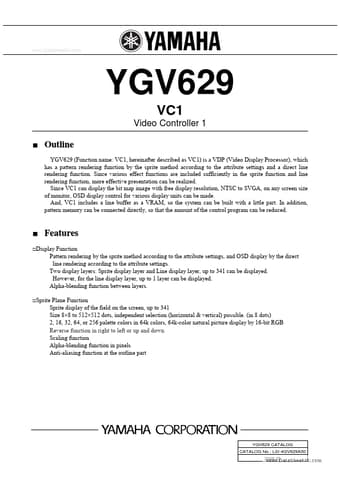

YGV629 VC1 Video Controller 1

www.DataSheet4U.com YGV629 VC1 Video Controller 1 Outline YGV629 (Function name: VC1, hereinafter described as VC1) is a VDP (Video Display Processor), which has a pattern rendering function by the sprite method according to the attribute settings and a direct line rendering function. Since various effect functions are included sufficiently in the sprite function and line rendering function, more effective presentation can be realized. Since VC1 can display the bit map image with free dis.

YGV629 Features

* Display Function Pattern rendering by the sprite method according to the attribute settings, and OSD display by the direct line rendering according to the attribute settings. Two display layers: Sprite display layer and Line display layer, up to 341 can be displayed. However, for the line d
