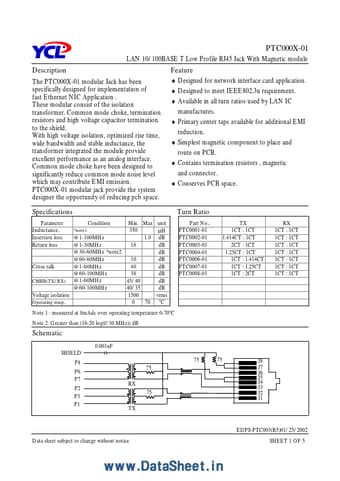

Description The PTC000X-01 modular Jack has been specifically designed for implementation of fast Ethernet NIC Application . These modular consist of the isolation transformer. mon mode choke, termination resistors and high voltage capacitor termination to the shield. With high voltage isolation, optimized rise time, wide bandwidth and stable inductance, the transformer integrated the module provide excellent performance as an analog interface. mon mode choke have been designed to significantly reduce mon mode noise level which may contribute EMI emission. PTC000X-01 modular jack provide the system designer the opportunity of reducing pcb space. Specifications Parameter Inductance, Insertion loss Return loss Min. Max unit 350 µH @1-100MHz 1.0 d B @1-30MHz 16 d B @30-60MHz - note2 d B @60-80MHz 10 d B @1-60MHz Cross talk 40 d B @60-100MHz 38 d B @1-60MHz 45/40 d B CMRR(TX/RX) @60-100MHz 40/35 d B Voltage isolation 1500 vrms 0 0 70 C Operating temp. - note1 Feature - Designed for network...
