KBU6005G - Glass Passivated Bridge Rectifier

Features

  • Plastic package has Underwriters Laboratory Flammability Classification 94V-0.
  • High surge current capability.
  • Ideal for printed circuit boards Mechanical Data.
  • Case: Molded plastic body over passivated junctions.
  • Terminals: Solderable per MIL-STD-202, method 208.
  • Polarity: As marked on body.
  • Mounting position: Any.
  • Weight: 8.0 grams Voltage Range 50 to 1000 V Current 6.0 Ampere KBU .760(19.3) .70(17.8) MAX .66(16.8) .935.

📥 Download Datasheet

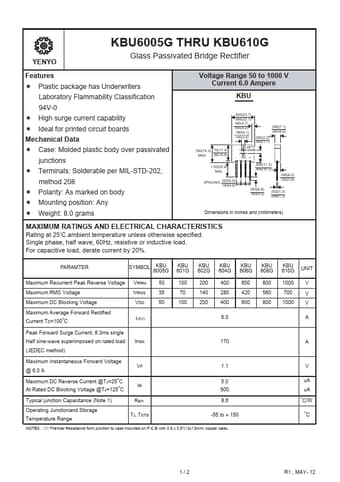

Datasheet preview – KBU6005G
