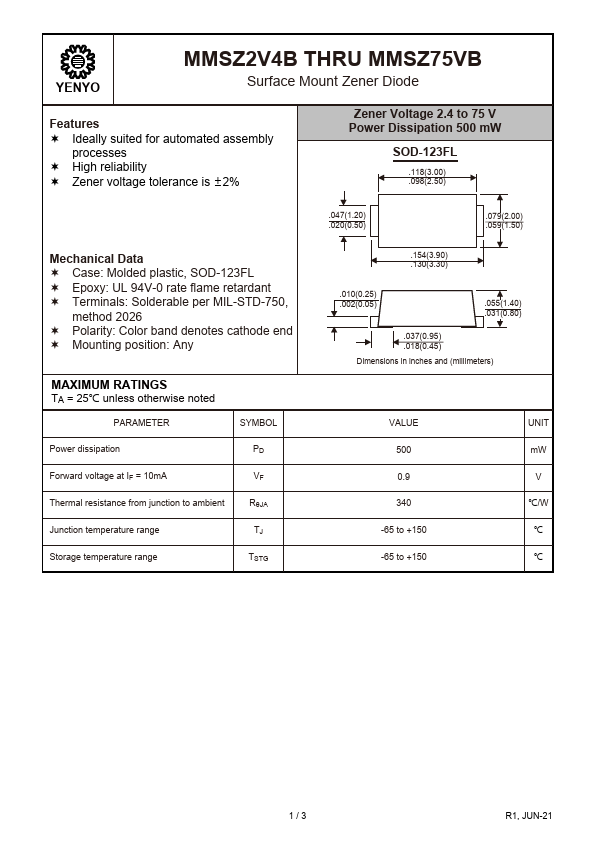

MMSZ12VB
Features
- Ideally suited for automated assembly processes
- High reliability
- Zener voltage tolerance is ±2%
Zener Voltage 2.4 to 75 V Power Dissipation 500 m W
SOD-123FL
.118(3.00) .098(2.50)
Mechanical Data
- Case: Molded plastic, SOD-123FL
- Epoxy: UL 94V-0 rate flame retardant
- Terminals: Solderable per MIL-STD-750, method 2026
- Polarity: Color band denotes cathode end
- Mounting position: Any
MAXIMUM RATINGS TA = 25℃ unless otherwise noted
PARAMETER
SYMBOL
Power dissipation
Forward voltage at IF = 10m A
Thermal resistance from junction to ambient
RθJA
Junction temperature range
Storage temperature range
TSTG
.047(1.20) .020(0.50)
.079(2.00) .059(1.50)
.154(3.90) .130(3.30)
.010(0.25) .002(0.05)
.055(1.40) .031(0.80)
.037(0.95) .018(0.45)
Dimensions in inches and (millimeters)
VALUE 500 0.9 340
-65 to +150 -65 to +150
UNIT m W
V ℃/W
℃ ℃
1/3
