SF6A01F - Glass Passivated Super Fast Recovery Rectifier

SF6A01F Description

YENYO SF6A01F THRU SF6A06F Glass Passivated Super Fast Recovery Rectifier .

SF6A01F Features

* Fast switching for high efficiency
* Low forward voltage drop
* High current capability
* Low reverse leakage current
* High surge current capability Mechanical Data
* Case: Molded plastic ITO-220AC
* Epoxy: UL 94V-0 rate flame retardant

📥 Download Datasheet

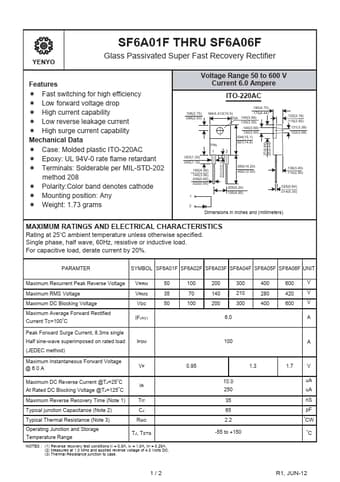

Preview of SF6A01F PDF
datasheet Preview Page 2

Datasheet Details

Part number
SF6A01F
Manufacturer
YENYO
File Size
691.17 KB
Datasheet
SF6A01F-YENYO.pdf
Description
Glass Passivated Super Fast Recovery Rectifier
