MM3Z3V3W, MM3Z2V0W Silicon Planar Zener Diodes

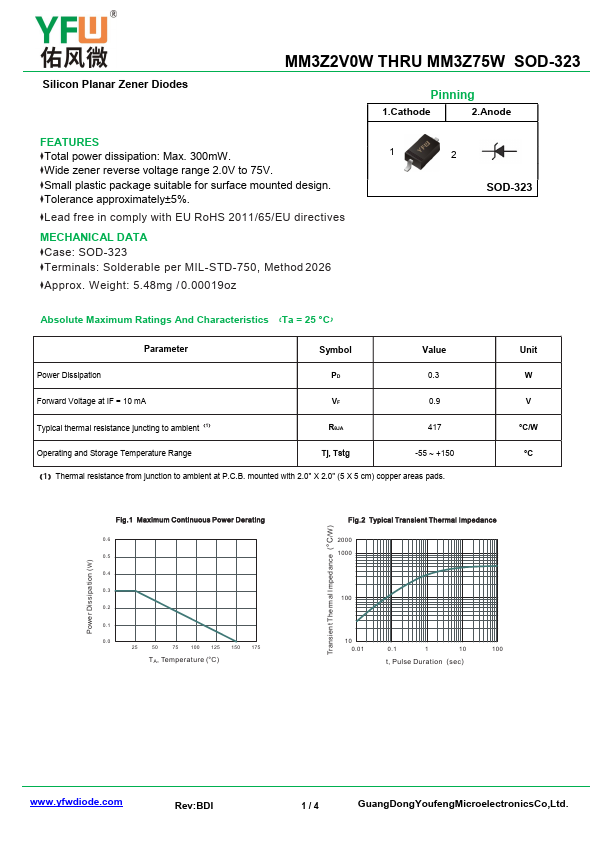

MM3Z3V3W Description

Silicon Planar Zener Diodes MM3Z2V0W THRU MM3Z75W SOD-323 Pinning 1.Cathode 2.Anode .

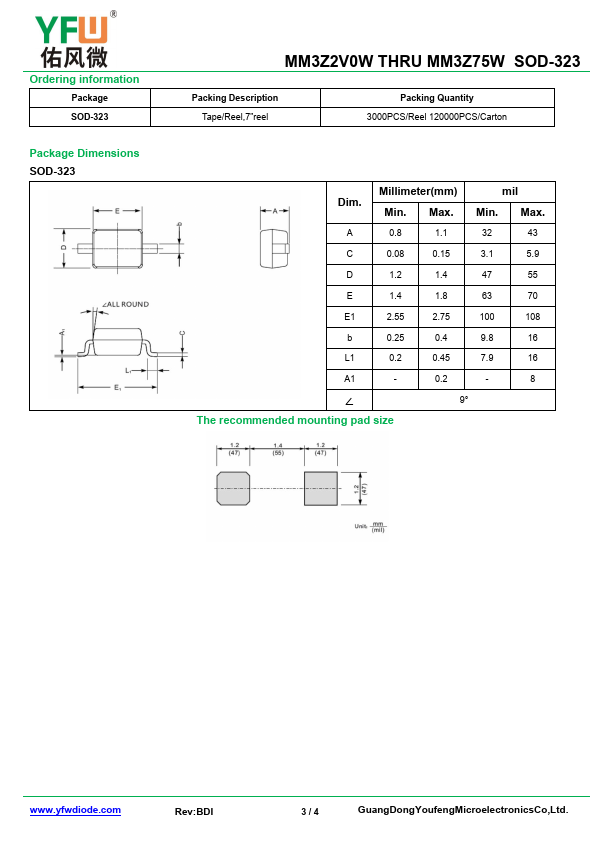

Tape/Reel,7”reel Packing Quantity 3000PCS/Reel 120000PCS/Carton Dim.

MM3Z3V3W Features

* Total power dissipation: Max. 300mW. 1
* Wide zener reverse voltage range 2.0V to 75V.
* Small plastic package suitable for surface mounted design.
* Tolerance approximately±5%.
* Lead free in comply with EU RoHS 2011/65/EU directives MECHANICAL DATA
* Case: SOD-323
* T

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: MM3Z3V3W, MM3Z2V0W. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MM3Z3V3W, MM3Z2V0W
Manufacturer
YFW
File Size
1.39 MB
Datasheet
MM3Z2V0W-YFW.pdf
Description
Silicon Planar Zener Diodes
Note
This datasheet PDF includes multiple part numbers: MM3Z3V3W, MM3Z2V0W.
Please refer to the document for exact specifications by model.
