SS39, SS32 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER

SS39 Description

DATA SHEET SEMICONDUCTOR SS32~SS320 SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER VOLTAGE- 20 to 200 Volts CURRENT- 3.0 Amperes .

SS39 Applications

* Low profile package Built-in strain relief Metal to silicon rectifier. majority carrier conduction Low power loss,high efficiency High surge capacity For use in low voltage high frequency inverters, free wheeling, and polarity protection applications High temperature soldering : 260OC / 10 seconds a

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: SS39, SS32. Please refer to the document for exact specifications by model.

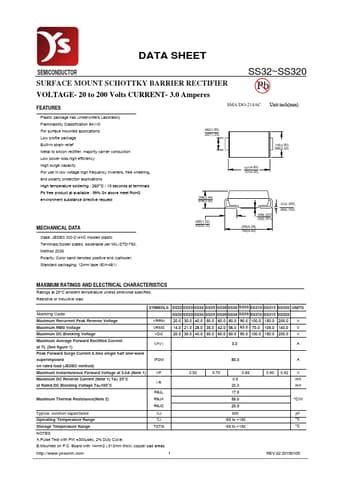

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
SS39, SS32
Manufacturer
YS
File Size
464.39 KB
Datasheet
SS32-YS.pdf
Description
SURFACE MOUNT SCHOTTKY BARRIER RECTIFIER
Note
This datasheet PDF includes multiple part numbers: SS39, SS32.
Please refer to the document for exact specifications by model.
