UF2A SURFACE MOUNT ULTRAFAST RECTIFIER

UF2A Description

DATA SHEET SEMICONDUCTOR UF2A THRU UF2M SURFACE MOUNT REVERSE VOLTAGE - 50 to 1000 Volts ULT RA FAST RECTI FIERS FORWARD CURRENT - 2.0 Ampere FEAT.

UF2A Features

* Glass passivated chip
* Ultra fast switching for high efficiency

UF2A Applications

* Low forward voltage drop and high current capability
* Low reverse leakage current
* Plastic material has UL flammability classification 94V-0
* High temperature soldering : 260OC / 10 seconds at terminals
* Pb free product at available : 99% Sn above meet R

📥 Download Datasheet

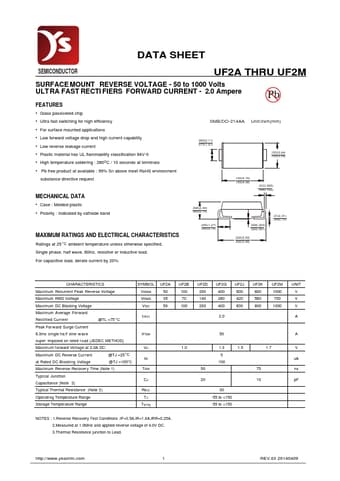

Preview of UF2A PDF
datasheet Preview Page 2

Datasheet Details

Part number
UF2A
Manufacturer
YS
File Size
96.70 KB
Datasheet
UF2A-YS.pdf
Description
SURFACE MOUNT ULTRAFAST RECTIFIER
