UF3010G - (UF300G - UF3010G) ULTRAFAST SWITCHING RECTIFIER

Features

  • Plastic package has Underwriters Laboratory Flammability Classification 94V-O utilizing Flame Retardant Epoxy Molding Compound.
  • Void-free Plastic in DO-201AD package.
  • 2.0 ampere operation at TA=55°C J with no thermal runaway.
  • Exceeds environmental standards of MIL-S-19500/228.
  • Ultra fast switching for high efficiency.
  • High temperature soldering : 260OC / 10 seconds at terminals.
  • Pb free product at available : 99% Sn above meet RoHS.

📥 Download Datasheet

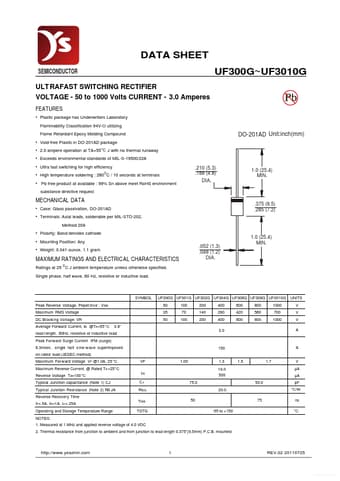

Datasheet preview – UF3010G

Datasheet Details

Part number UF3010G
Manufacturer YS
File Size 55.66 KB
Description (UF300G - UF3010G) ULTRAFAST SWITCHING RECTIFIER
Datasheet download datasheet UF3010G Datasheet
Additional preview pages of the UF3010G datasheet.

📁 Similar Datasheet

  • UF3010 - 3.0 AMP HIGH EFFICIENCY RECTIFIERS (Bytes)
  • UF3010 - ULTRAFAST SWITCHING RECTIFIER (Pan Jit International)
  • UF3010 - (UF300 - UF3010) ULTRAFAST SWITCHING RECTIFIER (TRSYS)
  • UF3010PT - Super Fast Recovery Rectifier (CumSumI)
  • UF301 - 3A Leaded Type Ultra Fast Rectifiers (CITC)
  • UF301 - ULTRAFAST SWITCHING RECTIFIER (Pan Jit International)
  • UF301 - ULTRAFAST SWITCHING RECTIFIER (TRSYS)
  • UF301 - 3.0 AMP HIGH EFFICIENCY RECTIFIERS (Bytes)
  • UF300 - 3.0 AMP HIGH EFFICIENCY RECTIFIERS (Bytes)
  • UF300 - ULTRAFAST SWITCHING RECTIFIER (Pan Jit International)
Other Datasheets by YS
  • UF301G - (UF300G - UF3010G) ULTRAFAST SWITCHING RECTIFIER
  • UF300G - (UF300G - UF3010G) ULTRAFAST SWITCHING RECTIFIER
  • UF302G - (UF300G - UF3010G) ULTRAFAST SWITCHING RECTIFIER
  • UF304G - (UF300G - UF3010G) ULTRAFAST SWITCHING RECTIFIER
  • UF306G - (UF300G - UF3010G) ULTRAFAST SWITCHING RECTIFIER
  • UF308G - (UF300G - UF3010G) ULTRAFAST SWITCHING RECTIFIER
  • UF3A - SURFACE MOUNT ULTRAFAST RECTIFIER
  • UF3B - SURFACE MOUNT ULTRAFAST RECTIFIER

Full PDF Text Transcription

Click to expand full text
DATA SHEET SEMICONDUCTOR ULT RAFAST SWITCHING RECTIFIER VOLTAGE - 50 to 1000 Volts CURRENT - 3.0 Amperes FEATURES • Plastic package has Underwriters Laboratory Flammability Classification 94V-O utilizing Flame Retardant Epoxy Molding Compound • Void-free Plastic in DO-201AD package • 2.0 ampere operation at TA=55°C J with no thermal runaway • Exceeds environmental standards of MIL-S-19500/228 • Ultra fast switching for high efficiency • High temperature soldering : 260OC / 10 seconds at terminals • Pb free product at available : 99% Sn above meet RoHS environment substance directive request UF300G~UF3010G DO-201AD Unit:inch(mm) .210 (5.3) .188 (4.8) DIA. 1.0 (25.4) MIN.
