ISO-1001 - 0-+/-10VDC or 0-5V AC Signal Converter

: ISO 1001 isolation amplifier IC integrates a high isolated DC/DC power supply and a high-powered isolated amplifier.

It also provides a group of isolated dc power supply and two 5V base voltage supply for use of exterior circuit extending, like electric bridge circuit and other circuits.

Input and

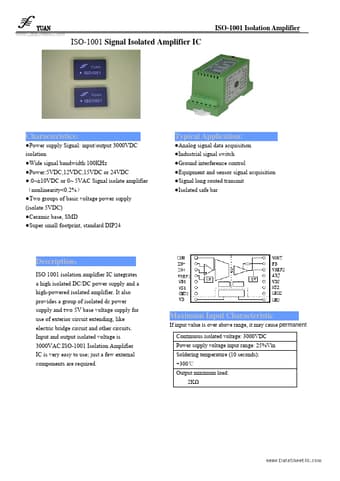

YUAN www.DataSheet4U.com ISO-1001 Isolation Amplifier ISO-1001 Signal Isolated Amplifier IC Characteristics: Power supply Signal: input/output 3000VDC isolation Wide signal bandwidth:100KHz Power:5VDC,12VDC,15VDC or 24VDC :0~±10VDC or 0~ 5VAC Signal isolate amplifier （nonlinearity<0.2%） Two groups of basic voltage power supply (isolate 5VDC) Ceramic base, SMD Super small footprint, standard DIP24 Typical Application: Analog signal data acquisition

ISO-1001_YUAN.pdf

ISO-1001 Datasheet Preview — Preview of ISO-1001 PDF

Datasheet Details

Part number:

ISO-1001

Manufacturer:

YUAN

File Size:

349.51 KB

Description:

0-+/-10vdc or 0-5v ac signal converter.
