WRA1212D-3W Datasheet - YUAN

WRA1212D-3W DC-DC CONVERTER

Pin 1,24 12,13 11,14 3,10,15, 22 2,23 Connection +Vin Input GND Input +Vo Output 0V Output -Vo Output SHENZHEN SUNYUAN TECHNOLOGY CO., LTD. 3F, 3Bldg, Duoli Industrial Zone, Meihua Rd. Futian District, Shenzhen 518049, China Tel: +86-755-83100080 Fax: +86-755-83116652 Email: info@szsunyuan.

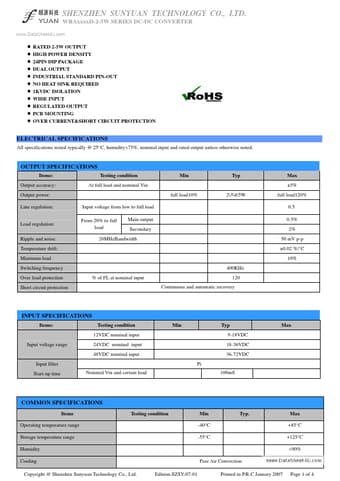

SHENZHEN SUNYUAN TECHNOLOGY CO., LTD. WRAxxxxD-2-5W SERIES DC-DC CONVERTER www.DataSheet4U.com RATED 2-5W OUTPUT HIGH POWER DENSITY 24PIN DIP PACKAGE DUAL OUTPUT INDUSTRIAL STANDARD PIN-OUT NO HEAT SINK REQUIRED 1KVDC ISOLATION WIDE INPUT REGULATED OUTPUT PCB MOUNTING OVER CURRENT&SHORT CIRCUIT PROTECTION ELECTRICAL SPECIFICATIONS All specifications tested typically @ 25°C, humidity<75%, nominal input and rated output unless otherwise noted. OUTPUT SPECIFICATIONS Items: Testing condition Out.

WRA1212D-3W Features

* of the majority of Sunyuan components DC-DC converters is the high galvanic isolation capability. This allows several variations on circuit topography by using a single DC-DC converter. The basic input to output isolation can be used to provide either a simple isolated output power source, or to gen
