WRB4805D-4W DC-DC CONVERTER

Pin 1, 24 12,13 11, 14 10,15 2,3,22,23 Connection +Vin Input GND Input +Vo Output 0V Output NC SHENZHEN SUNYUAN TECHNOLOGY CO., LTD. 3F, 3Bldg, Duoli Industrial Zone, Meihua Rd. Futian District, Shenzhen 518049, China Tel: +86-755-83100080 Fax: +86-755-83116652 Copyright @ Shenzhen Sunyua.

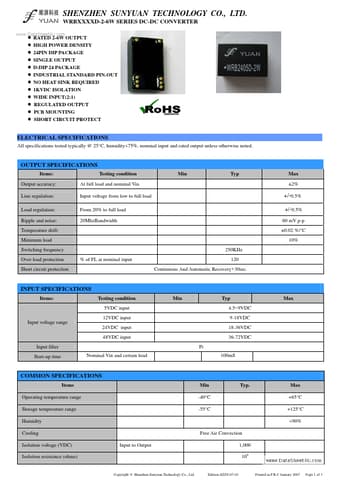

SHENZHEN SUNYUAN TECHNOLOGY CO., LTD. WRBXXXXD-2-6W SERIES DC-DC CONVERTER www.DzaRtaAShTeEeDt4U2-.c6oWmOUTPUT z HIGH POWER DENSITY z 24PIN DIP PACKAGE z SINGLE OUTPUT z D:DIP 24 PACKAGE z INDUSTRIAL STANDARD PIN-OUT z NO HEAT SINK REQUIRED z 1KVDC ISOLATION z WIDE INPUT(2:1) z REGULATED OUTPUT z PCB MOUNTING z SHORT CIRCUIT PROTECT ELECTRICAL SPECIFICATIONS All specifications tested typically @ 25°C, humidity<75%, nominal input and rated output unless otherwise noted. OUTPUT SPECIFICATIONS It.
