LT10.7 - Ceramic Filter

Datasheet Details

Part number	LT10.7
Manufacturer	YUKUTO
File Size	432.83 KB
Description	Ceramic Filter
Datasheet	LT10.7 Datasheet
Additional preview pages of the LT10.7 datasheet.

📁 Similar Datasheet

LT10.7M - Ceramic Filters (Token)
LT10.7M - Ceramic Filter (VANLONG)
LT10.7MA19 - CERAMIC FILTER (Yantai Cn Electronics)
LT10.7MA19 - Ceramic Resonators (Fortiming)
LT10.7MA19 - Ceramic Filter and Discriminator (Chequers Electronic)
LT10.7MA19-A - Ceramic Filter (RELM)
LT10.7MA20 - CERAMIC FILTER (Yantai Cn Electronics)
LT10.7MA20 - Ceramic Resonators (Fortiming)
LT10.7MA20 - Ceramic Filter and Discriminator (Chequers Electronic)
LT10.7MA20-A - Ceramic Filter (RELM)

Other Datasheets by YUKUTO

Full PDF Text Transcription

Click to expand full text

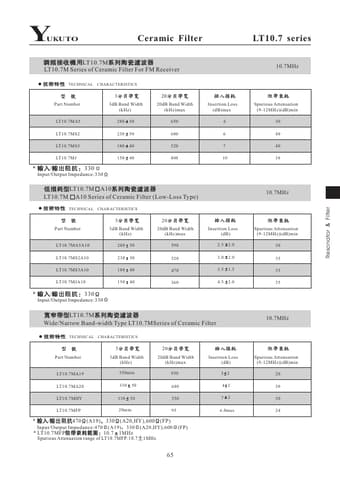

YUKUTO Ceramic Filter LT10.7 series Resonator & Filter LT10.7M LT10.7M Series of Ceramic Filter For FM Receiver TECHNICAL CHARACTERISTICS Part Number 3 3dB Band Width (kHz) LT10.7MA5 280 50 LT10.7MS2 230 50 LT10.7MS3 180 40 LT10.7MJ */ 330 Input/Output Impedance:330 150 40 20 20dB Band Width (kHz)max 650 600 520 400 Insertion Loss (dB)max 6 6 7 10 LT10.7M A10 LT10.7M A10 Series of Ceramic Filter (Low-Loss Type) TECHNICAL CHARACTERISTICS Part Number 3 3dB Band Width (kHz) LT10.7MA5A10 280 50 20 20dB Band Width (kHz)max 590 LT10.7MS2A10 230 50 520 LT10.7MS3A10 180 40 470 LT10.7MJA10 */ 330 Input/Output Impedance:330 150 40 360 Insertion Loss (dB) 2.5 2.0 3.0 2.0 3.5 1.5 4.5 2.0 LT10.7M Wide/Narrow Band-width Type LT10.

Published: Oct 4, 2017 |
