CTX12-BS - POWERSPORTS BATTERY

📥 Download Datasheet

Datasheet preview – CTX12-BS

Datasheet Details

Part number CTX12-BS
Manufacturer Yacht
File Size 249.41 KB
Description POWERSPORTS BATTERY
Datasheet download datasheet CTX12-BS Datasheet
Additional preview pages of the CTX12-BS datasheet.

📁 Similar Datasheet

  • CTX12-BS - Motorcycle Battery (Panther)
  • CTX128 - Clock Oscillator (Digikey)
  • CTX128 - Clock Oscillator (ETC)
  • CTX10-1-52 - LOW COST POWER INDUCTORS (Cooper Bussmann)
  • CTX10-1-52-R - LOW COST POWER INDUCTORS (Cooper Bussmann)
  • CTX10-10-52 - LOW COST POWER INDUCTORS (Cooper Bussmann)
  • CTX10-10-52-R - LOW COST POWER INDUCTORS (Cooper Bussmann)
  • CTX10-16-52 - LOW COST POWER INDUCTORS (Cooper Bussmann)
  • CTX10-16-52-R - LOW COST POWER INDUCTORS (Cooper Bussmann)
  • CTX10-2-52 - LOW COST POWER INDUCTORS (Cooper Bussmann)
Other Datasheets by Yacht

    Full PDF Text Transcription

    Click to expand full text

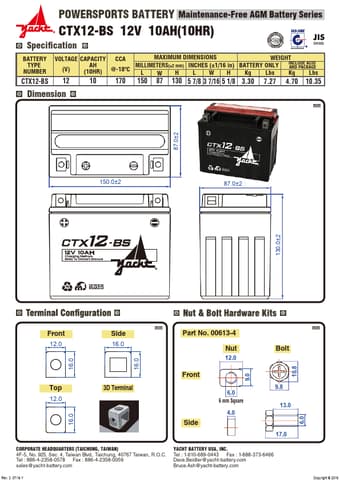

    POWERSPORTS BATTERY Maintenance-Free AGM Battery Series CTX12-BS 12V 10AH(10HR) Specification M4340909ID D5302 BATTERY TYPE NUMBER CTX12-BS VOLTAGE CAPACITY CCA AH (V) (10HR) @-18ºC 12 10 170 MAXIMUM DIMENSIONS WEIGHT MILLIMETERS(±2 mm) INCHES (±1/16 in) BATTERY ONLY INCLUDE ACID AND PACKAGE L W H L W H Kg Lbs Kg Lbs 150 87 130 5 7/8 3 7/16 5 1/8 3.30 7.27 4.70 10.35 Dimension mm 150.0±2 87.0±2 87.0±2 130.0±2 Front 12.0 Side 16.0 mm Part No. 00613-4 Nut 12.0 Bolt 16.0 16.0 16.0 Top 3D Terminal 12.0 Front Side 6.0 6 mm Square 4.0 9.8 13.0 17.0 CORPORATE HEADQUARTERS (TAICHUNG, TAIWAN) 4F-5, No. 925, Sec. 4, Taiwan Blvd., Taichung, 40767 Taiwan, R.O.C. Tel : 886-4-2358-0578 Fax : 886-4-2358-0059 sales@yacht-battery.com YACHT BATTERY USA, INC.
