2322-xxx-xxxxx General Purpose Chip Resistors

POWER RATING RC0603 rated power at 70°C is 1/10 W RATED VOLTAGE The DC or AC (rms) continuous working voltage corresponding to the rated power is determined by the following formula: V= √ (P X R) Where V=Continuous rated DC or AC (rms) working voltage (V) P=Rated power (W) R=Resistance value ( X ) .

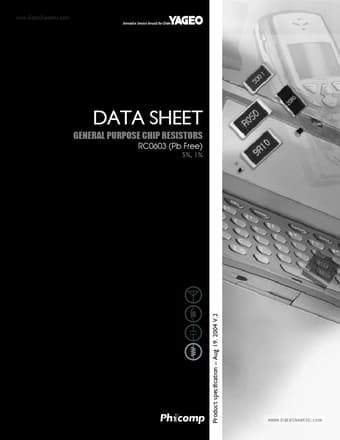

www.DataSheet4U.com DATA SHEET GENERAL PURPOSE CHIP RESISTORS RC0603 (Pb Free) 5%, 1% Product specification Aug 19, 2004 V.2 Supersedes Date of Mar. 06, 2003 www.DataSheet4U.com Product specification 2 10 Chip Resistor Surface Mount RC SERIES 0603 (Pb Free) SCOPE This specification describes RC0603 series chip resistors with lead-free terminations made by thick film process. ORDERING INFORMATION Part number is identified by the series, size, tolerance, packing type, temperatur.
