DDP104 Datasheet - Yamaichi

DDP104 D Series Dual Port Solder Dip

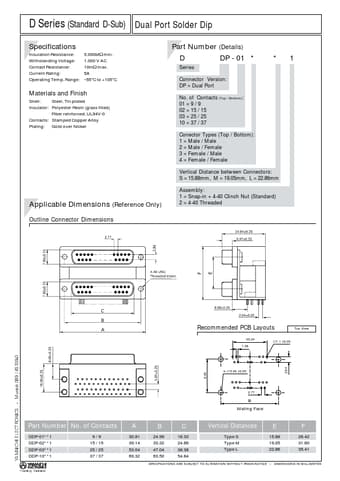

D Series (Standard D-Sub) Dual Port Solder Dip Specifications Insulation Resistance: Withstanding Voltage: Contact Resistance: Current Rating: Operating Temp. Range: 5,000M9 min. 1,000 V AC 10m9 max. 5A 55°C to +105°C Part Number (Details) D Series Connector Version: DP = Dual Port No. of Contacts (Top / Bottom): 01 = 9 / 9 02 = 15 / 15 03 = 25 / 25 10 = 37 / 37 Conector Types (Top / Bottom): 1 = Male / Male 2 = Male / Female 3 = Female / Male 4 = Female / Female Vertical Distance betw.

DDP104 Datasheet (38.15 KB)

DDP104 Datasheet Preview — Preview of DDP104 PDF

Datasheet Details

Part number:

DDP104

Manufacturer:

Yamaichi

File Size:

38.15 KB

Description:

D series dual port solder dip.
