LJE0359AM-2T, LJE0252-B Datasheet - Yamaichi

LJE0359AM-2T TH Earphone Jacks

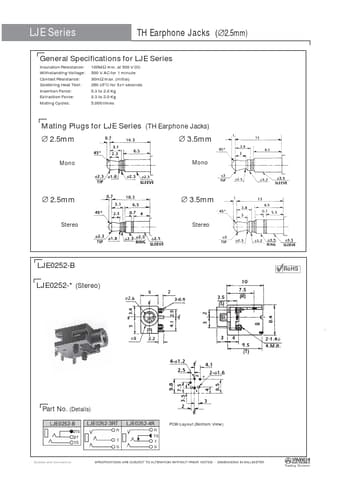

LJE Series TH Earphone Jacks (∅2.5mm) General Specifications for LJE Series Insulation Resistance: Withstanding Voltage: Contact Resistance: Soldering Heat Test: Insertion Force: Extraction Force: Mating Cycles: 100MΩ min. at 500 V DC 500 V AC for 1 minute 30mΩ max. (initial) 260 ±5°C for 5±1 seconds 0.3 to 2.0 Kg 0.3 to 2.0 Kg 5,000 times Mating Plugs for LJE Series (TH Earphone Jacks) ∅ 2.5mm ∅ 3.5mm Mono Mono ∅ 2.5mm Stereo ∅ 3.5mm Stereo LJE0252-B LJE0252- (Stereo) RoHS Pa.

LJE0252-B-Yamaichi.pdf

This datasheet PDF includes multiple part numbers: LJE0359AM-2T, LJE0252-B. Please refer to the document for exact specifications by model.
LJE0359AM-2T Datasheet Preview Page 2 LJE0359AM-2T Datasheet Preview Page 3

Datasheet Details

Part number:

LJE0359AM-2T, LJE0252-B

Manufacturer:

Yamaichi

File Size:

230.74 KB

Description:

Th earphone jacks.

Note:

This datasheet PDF includes multiple part numbers: LJE0359AM-2T, LJE0252-B.
Please refer to the document for exact specifications by model.
