LJE0361-4R - TH Earphone Jacks

This page provides the datasheet information for the LJE0361-4R, a member of the LJE0252-B TH Earphone Jacks family.

📥 Download Datasheet

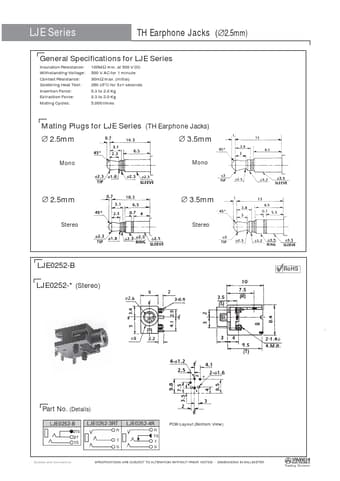

Datasheet preview – LJE0361-4R

Datasheet Details

Part number LJE0361-4R
Manufacturer Yamaichi
File Size 230.74 KB
Description TH Earphone Jacks
Datasheet download datasheet LJE0361-4R Datasheet
Additional preview pages of the LJE0361-4R datasheet.

📁 Similar Datasheet

Other Datasheets by Yamaichi

Full PDF Text Transcription

Click to expand full text
LJE Series TH Earphone Jacks (∅2.5mm) General Specifications for LJE Series Insulation Resistance: Withstanding Voltage: Contact Resistance: Soldering Heat Test: Insertion Force: Extraction Force: Mating Cycles: 100MΩ min. at 500 V DC 500 V AC for 1 minute 30mΩ max. (initial) 260 ±5°C for 5±1 seconds 0.3 to 2.0 Kg 0.3 to 2.0 Kg 5,000 times Mating Plugs for LJE Series (TH Earphone Jacks) ∅ 2.5mm ∅ 3.5mm Mono Mono ∅ 2.5mm Stereo ∅ 3.5mm Stereo LJE0252-B LJE0252-* (Stereo) RoHS Part No. (Details) PCB-Layout (Bottom View) Sockets and Connectors SPECIFICATIONS ARE SUBJECT TO ALTERATION WITHOUT PRIOR NOTICE - DIMENSIONS IN MILLIMETER Trading Division LJE Series LJE0357-B TH Earphone Jacks (∅3.5mm) RoHS Part No.
