SIG100 - UART/LIN over Powerline Transceiver

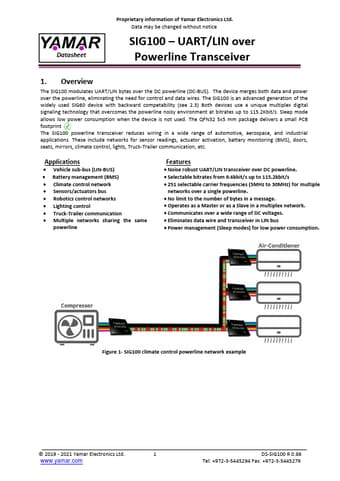

SIG100 Datasheet Preview — Preview of SIG100 PDF

Datasheet Details

Part number	SIG100
Manufacturer	Yamar
File Size	2.56 MB
Description	UART/LIN over Powerline Transceiver
Datasheet	SIG100-Yamar.pdf

SIG100 Product details

Description

4 2.1 The SIG100 in a network 4 2.2 The Signaling technology 4 2.3 Backward competabilty with SIG60 4 2.4 SIG100 architecture 5 2.5 Pin configuration and function 5 2.6 Implementation 7 3. OPERATION 10 3.1 Interfacing to UART/LIN ECU10 3.2 Interfacing to existing LIN module 11 3.3 SIG100 messages 11 3.4 Device configuration12 4. POWER OPERATION MODES14 4.1 Normal mode14 4.2 Standby mode14 4.3 Sleep modes (power-saving)14 4.4 Auto Sleep mode 16 4.5 Sleep modes Examples17 5. SIG

Features

Noise robust UART/LIN transceiver over DC powerline.
Selectable bitrates from 9.6kbit/s up to 115.2kbit/s.
251 selectable carrier frequencies (5MHz to 30MHz) for multiple networks over a single powerline.
No limit to the number of bytes in a message.
Operates as a Master or as a Slave in a multiplex network.
Communicates over a wide range of DC voltages.
Eliminates data wire and transceiver in LIN bus.
Power management (Sleep modes) for low power con.
