1S50 Schottky Barrier Rectifier

Yangzhou Yangjie

1S50 Description

1S20 THRU 1S200 RoHS COMPLIANT Schottky Barrier Rectifier .

1S50 Features

* Guardring for overvoltage protection
* Very small conduction losses
* Extremely fast switching
* High forward surge capability
* High frequency operation

1S50 Applications

* For use in low voltage high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications. Mechanical Data
* Package: R-1 Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, Halogen free
* Terminals: Tin plated leads, solderable per J-STD- 002 a

📥 Download Datasheet

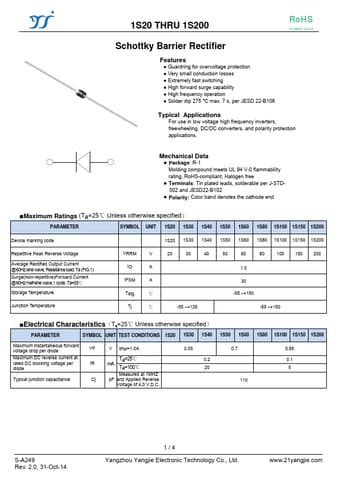

1S50 Datasheet Preview — Preview of 1S50 PDF

Datasheet Details

Part number: 1S50
Manufacturer: Yangzhou Yangjie
File Size: 182.24 KB
Datasheet: 1S50-YangzhouYangjie.pdf
Description: Schottky Barrier Rectifier
