BAT45 - Small Signal Schottky Diodes

BAT45 Description

DO-35 BAT45 Small Signal Schottky Diodes .

BAT45 Features

* VR 15V
* IFAV 30mA RoHS COMPLIANT
* Limiting Values (Absolute Maximum Rating) Item Symbols Peak Reverse Voltage VRRM Forward Continuous Current IF Surge non repetitive forward current tp≤1s Junction and Storage temperature range Maximum Lead Temperature for Soldering during 10s at

📥 Download Datasheet

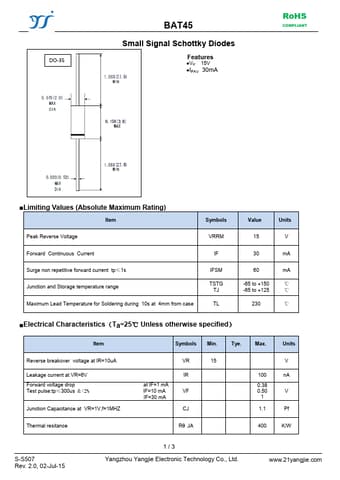

Preview of BAT45 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BAT45
Manufacturer
Yangzhou Yangjie
File Size
476.31 KB
Datasheet
BAT45-YangzhouYangjie.pdf
Description
Small Signal Schottky Diodes
