D10JB05

Bridge Rectifier

D10JB05 Features

* UL recognition, file #E230084

* Glass passivated chip junction

* Thin single in-line package

* High surge current capability

* Solder dip 275 °C max. 7 s, per JESD 22-B106 Typical Applications General purpose use in AC/DC bridge full wave rectification for switching power supp

D10JB05 Datasheet (231.10 KB)

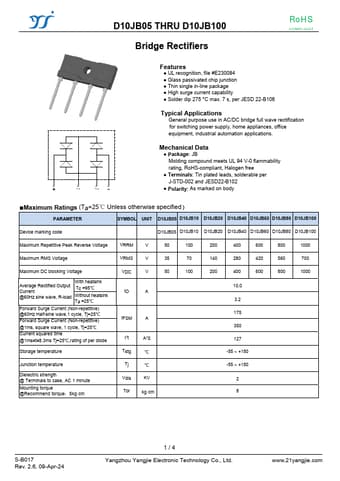

Preview of D10JB05 PDF

Datasheet Details

Part number:

D10JB05

Manufacturer:

Yangzhou Yangjie

File Size:

231.10 KB

Description:

Bridge rectifier.
