DF50NA160 - Three Phase Bridge Rectifier

This page provides the datasheet information for the DF50NA160, a member of the DF50NA80 Three Phase Bridge Rectifier family.

Datasheet Summary

Features

  • UL recognition, file #E230084.
  • Glass passivated chip junction.
  • Thin single in-line package.
  • High surge current capability.
  • Solder dip 275 °C max. 7 s, per JESD 22-B106 Typical.

📥 Download Datasheet

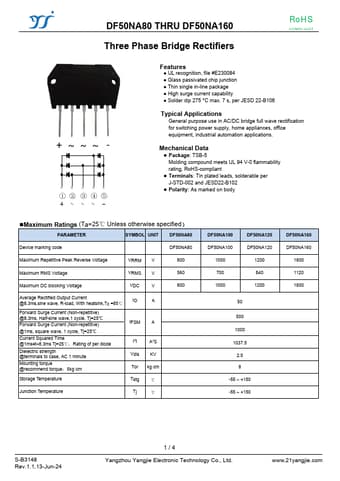

Datasheet preview – DF50NA160

Datasheet Details

Part number DF50NA160
Manufacturer Yangzhou Yangjie
File Size 220.42 KB
Description Three Phase Bridge Rectifier
Datasheet download datasheet DF50NA160 Datasheet
Additional preview pages of the DF50NA160 datasheet.

📁 Similar Datasheet

  • DF50AA120 - DIODE (SanRex)
  • DF50AA160 - DIODE (SanRex)
  • DF50BA40 - DIODE (SanRex)
  • DF50BA80 - DIODE (SanRex)
  • DF5-1822SC - 5mm Pitch Miniature Potting Connector for Secondary Power Supply (Hirose)
  • DF5-1822SCF - 5mm Pitch Miniature Potting Connector for Secondary Power Supply (Hirose)
  • DF52 - Small & Robust Wire to Board Connector (HRS)
  • DF522S10A - Dielectric Filters (Token)
  • DF546 - DIODES (DIODES FOR PROTECTING AGAINST ESD) (Toshiba)
  • DF5800S200D - Dielectric Filters (Token)
Other Datasheets by Yangzhou Yangjie

Full PDF Text Transcription

Click to expand full text
DF50NA80 THRU DF50NA160 Three Phase Bridge Rectifiers RoHS COMPLIANT +~~~ ‐ ①② ③ ④⑤ Features ● UL recognition, file #E230084 ● Glass passivated chip junction ● Thin single in-line package ● High surge current capability ● Solder dip 275 °C max. 7 s, per JESD 22-B106 Typical Applications General purpose use in AC/DC bridge full wave rectification for switching power supply, home appliances, office equipment, industrial automation applications.
