ES2CBF, ES2ABF - Surface Mount Super Fast Recovery Rectifier

ES2CBF Description

ES2ABF THRU ES2KBF RoHS COMPLIANT Surface Mount Super Fast Recovery Rectifier .

ES2CBF Features

* Low profile package
* Ideal for automated placement
* Glass passivated chip junction
* High forward surge capability
* Super Fast reverse recovery time

ES2CBF Applications

* For use in high frequency rectification of power supplies, inverters, converters, and freewheeling diodes for consumer and telecommunication. Mechanical Data
* Package: SMBF Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free
* Terminals: Tin plated leads, sold

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: ES2CBF, ES2ABF. Please refer to the document for exact specifications by model.

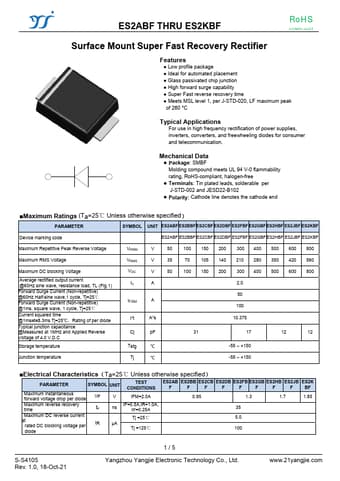

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ES2CBF, ES2ABF
Manufacturer
Yangzhou Yangjie
File Size
250.18 KB
Datasheet
ES2ABF-YangzhouYangjie.pdf
Description
Surface Mount Super Fast Recovery Rectifier
Note
This datasheet PDF includes multiple part numbers: ES2CBF, ES2ABF.
Please refer to the document for exact specifications by model.
