FR102, FR101 - Fast Recovery Rectifier

Yangzhou Yangjie

Datasheet Details

Part number	FR102, FR101
Manufacturer	Yangzhou Yangjie
File Size	208.24 KB
Description	Fast Recovery Rectifier
Datasheet	FR101-YangzhouYangjie.pdf
Note	This datasheet PDF includes multiple part numbers: FR102, FR101. Please refer to the document for exact specifications by model.

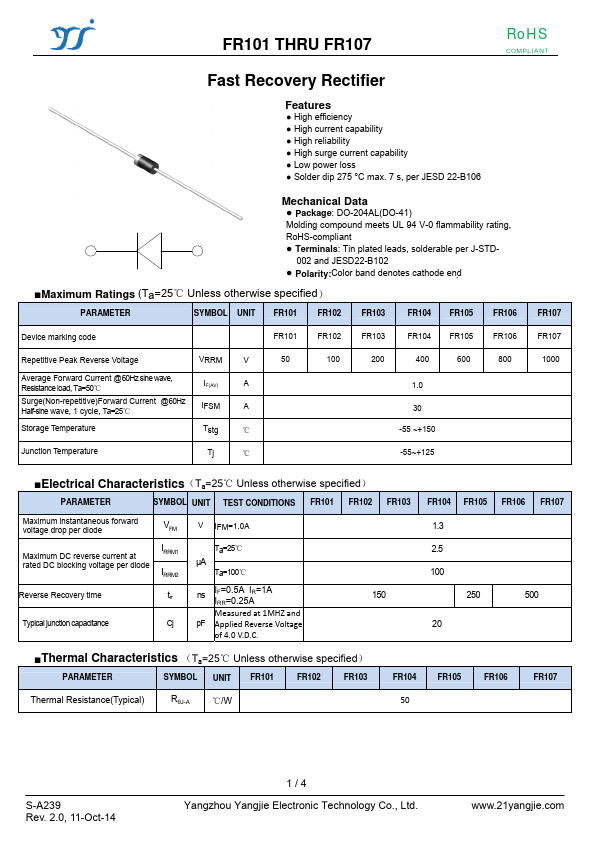

High efficiency.
High current capability.
High reliability.
High surge current capability.
Low power loss.
Solder dip 275 °C max. 7 s, per JESD 22-B106 Mechanical Data.

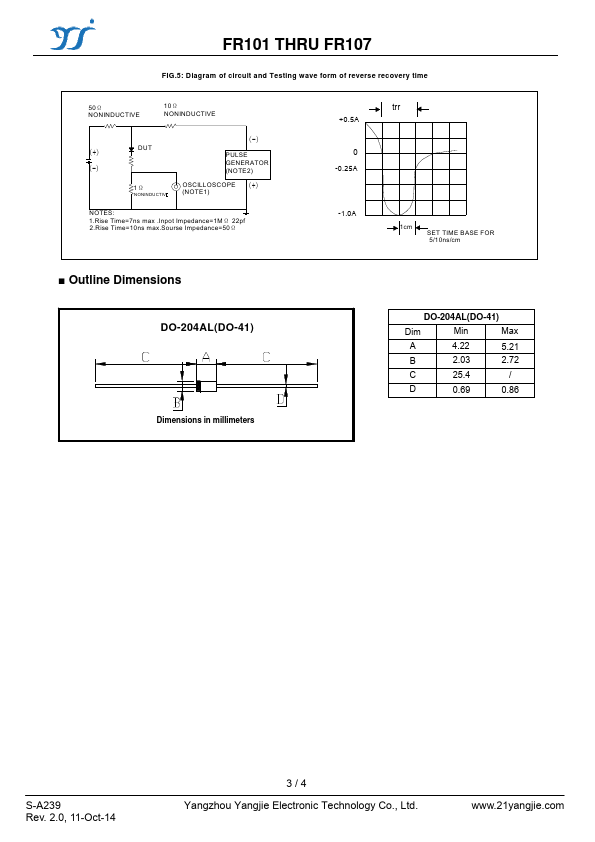

Package: DO-204AL(DO-41) Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant.
Terminals: Tin plated leads, solderable per J-STD- 002 and JESD22-B102.
Polarity:Color band denotes cathode end.
Maximum Ratings (Ta=25℃ Unless otherwise specified）.
