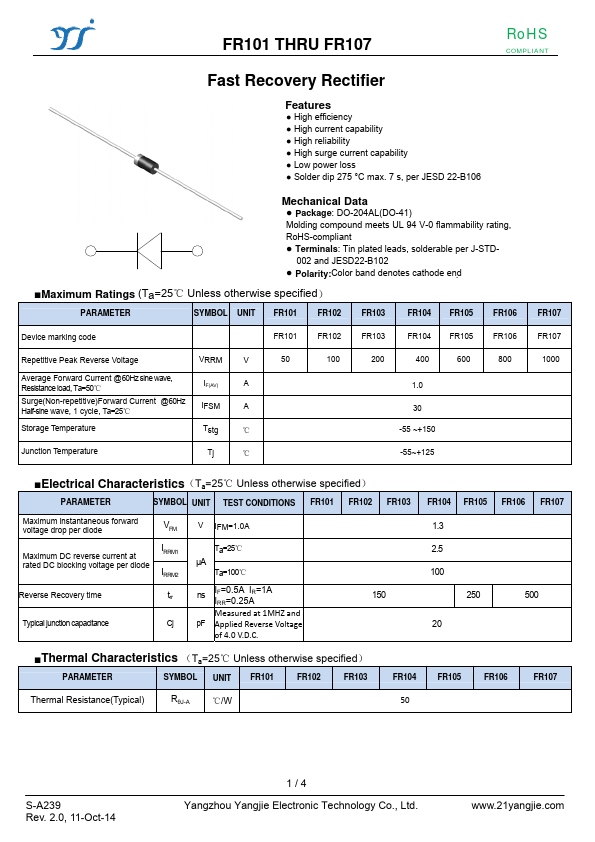

FR103
Features
- High efficiency
- High current capability
- High reliability
- High surge current capability
- Low power loss
- Solder dip 275 °C max. 7 s, per JESD 22-B106
Mechanical Data
- Package: DO-204AL(DO-41)
Molding pound meets UL 94 V-0 flammability rating, Ro HS-pliant
- Terminals: Tin plated leads, solderable per J-STD-
002 and JESD22-B102
- Polarity:Color band denotes cathode end
- Maximum Ratings (Ta=25℃ Unless otherwise specified）
PARAMETER
SYMBOL UNIT FR101 FR102 FR103
FR104 FR105 FR106
Device marking code
FR101
FR102
FR104 FR105
FR106
Repetitive Peak Reverse Voltage
VRRM
Average Forward Current @60Hz sine wave, Resistance load, Ta=50℃
IF(AV)
Surge(Non-repetitive)Forward Current @60Hz Half-sine wave, 1 cycle, Ta=25℃
IFSM
Storage Temperature
Tstg
℃
Junction Temperature
Tj
℃...
