GBU2502A - Bridge Rectifier

This page provides the datasheet information for the GBU2502A, a member of the GBU25005A Bridge Rectifier family.

Datasheet Summary

Features

  • UL recognition, file #E230084.
  • Glass passivated chip junction.
  • Ideal for printed circuit boards.
  • High surge current capability.
  • Solder dip 275 °C max. 7 s, per JESD 22-B106 Typical.

📥 Download Datasheet

Datasheet preview – GBU2502A

Datasheet Details

Part number GBU2502A
Manufacturer Yangzhou Yangjie
File Size 217.08 KB
Description Bridge Rectifier
Datasheet download datasheet GBU2502A Datasheet

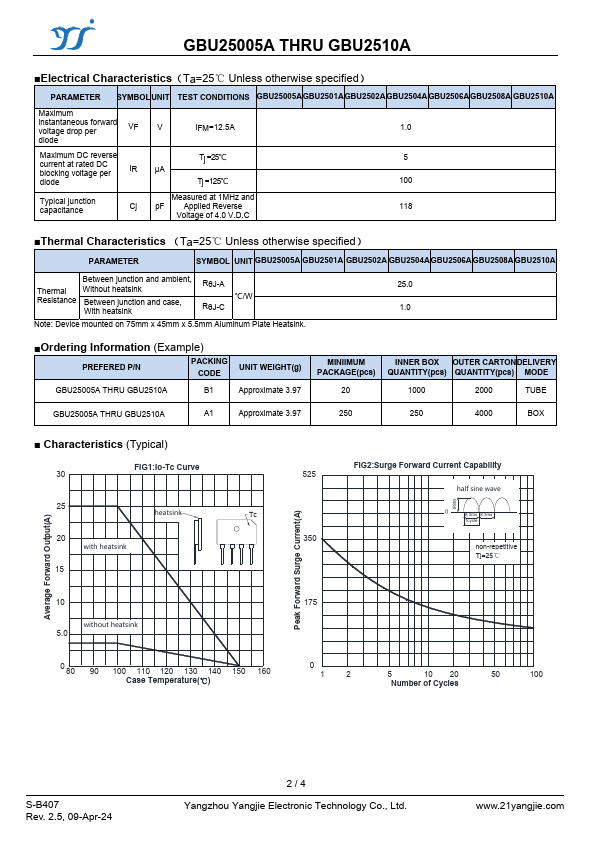

Additional preview pages of the GBU2502A datasheet.

📁 Similar Datasheet

  • GBU2502 - GLASS PASSIVATED BRIDGE RECTIFIERS (HY)
  • GBU2502 - 25 Amp Single Phase Glass Passivated Bridge Rectifiers (MCC)
  • GBU2502 - Silicon Bridge Rectifiers (GME)
  • GBU2502 - Glass Passivated Bridge Rectifiers (GOOD-ARK)
  • GBU2502 - Molding Single-Phase Bridge Rectifier (SeCoS)
  • GBU2502-G - Glass Passivated Bridge Rectifiers (Comchip)
  • GBU25005 - GLASS PASSIVATED BRIDGE RECTIFIERS (HY)
  • GBU25005 - 25 Amp Single Phase Glass Passivated Bridge Rectifiers (MCC)
  • GBU25005 - Glass Passivated Bridge Rectifiers (GOOD-ARK)
  • GBU25005 - Silicon Bridge Rectifiers (GME)
Other Datasheets by Yangzhou Yangjie

Full PDF Text Transcription

Click to expand full text
GBU25005A THRU GBU2510A RoHS COMPLIANT Bridge Rectifiers Features ● UL recognition, file #E230084 ● Glass passivated chip junction ● Ideal for printed circuit boards ● High surge current capability ● Solder dip 275 °C max. 7 s, per JESD 22-B106 Typical Applications General purpose use in AC/DC bridge full wave rectification for monitor, TV, printer, power supply, switching mode power supply, adapter, audio equipment, and home appliances applications.
