GR1J, GR1A Surface Mount Fast Recovery Rectifier

Yangzhou Yangjie

Description

GR1A THRU GR1M Surface Mount Fast Recovery Rectifier RoHS COMPLIANT .

📥 Download Datasheet

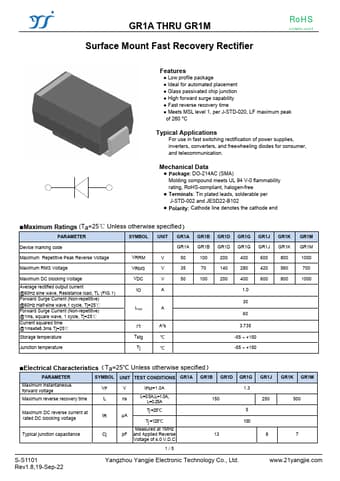

GR1J Datasheet Preview — This datasheet PDF includes multiple part numbers: GR1J, GR1A. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: GR1J, GR1A
Manufacturer: Yangzhou Yangjie
File Size: 217.18 KB
Datasheet: GR1A-YangzhouYangjie.pdf
Description: Surface Mount Fast Recovery Rectifier
Note: This datasheet PDF includes multiple part numbers: GR1J, GR1A.
Please refer to the document for exact specifications by model.

Features

* Low profile package
* Ideal for automated placement
* Glass passivated chip junction
* High forward surge capability
* Fast reverse recovery time

Applications

* For use in fast switching rectification of power supplies, inverters, converters, and freewheeling diodes for consumer, and telecommunication. Mechanical Data
* Package: DO-214AC (SMA) Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free
* Terminals: Tin plated
